DC1414B-B, Demo Board Using LTM4601AHV 5 to 28Vin, 12A Step-Down Regulator
Referenzdesign unter Verwendung des Teils LTM4601AHVEV von Analog Devices
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Servers
- Telecom & Networking Equipments
Beschreibung

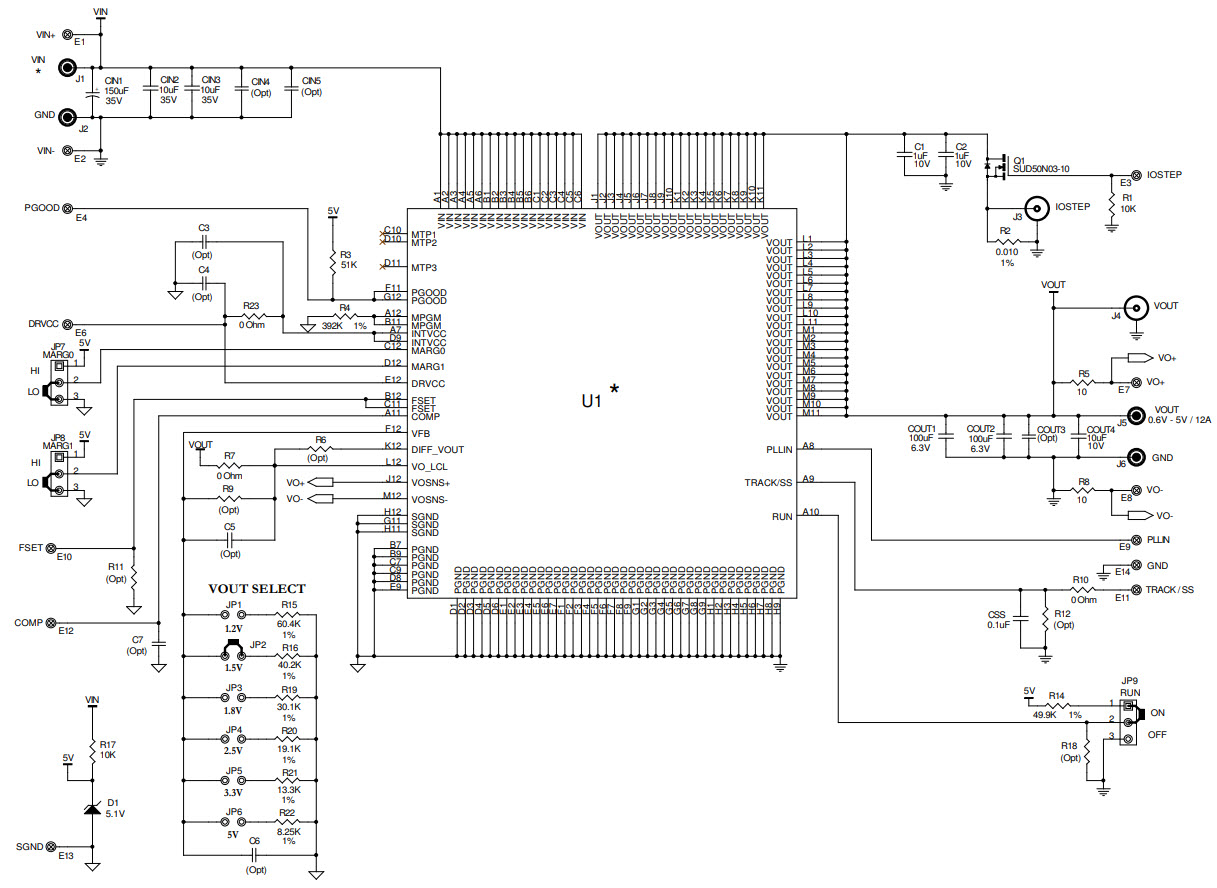

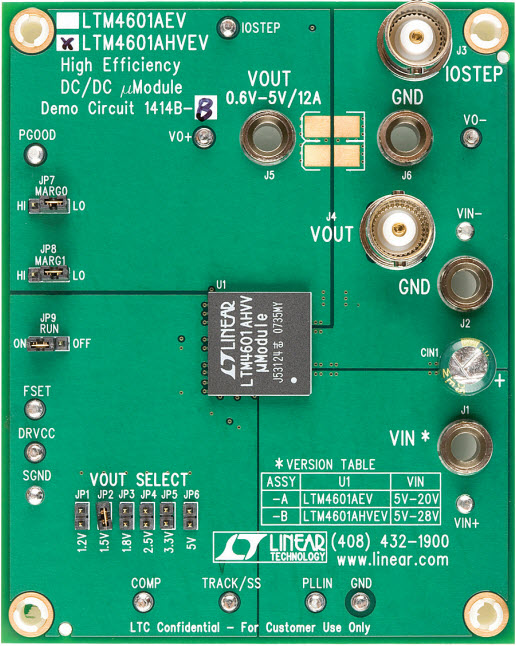

- DC1414B-B, Demonstration Circuit features the LTM4601AHVEV high efficiency, high density switch mode step-down power module. The input voltage range is 5V to 28V with a jumper selectable output voltage from 0.6V to 5V. The rated load current is 12A, although derating is necessary for certain VIN, VOUT and thermal conditions. The PLLIN pin supports synchronizing the Module regulator to an external clock. The TRACK/SS pin allows the user to program output ramp-up and ramp down rates which may coincidentally or ratiometrically track with another voltage rail
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage5 to 28 V
-
Output Voltage1.2|1.5|1.8|2.5|3.3|5 V
-
Output Current12 A
-
Efficiency89.5 %
-
TopologyBuck
Empfohlene Bauteile (1)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTM4601AHVEV#PBF | Analog Devices | DC to DC Converter and Switching Regulator Module | Module DC-DC 1-OUT 0.6V to 5V 12A 133-Pin LGA Tray | In den Warenkorb | |
