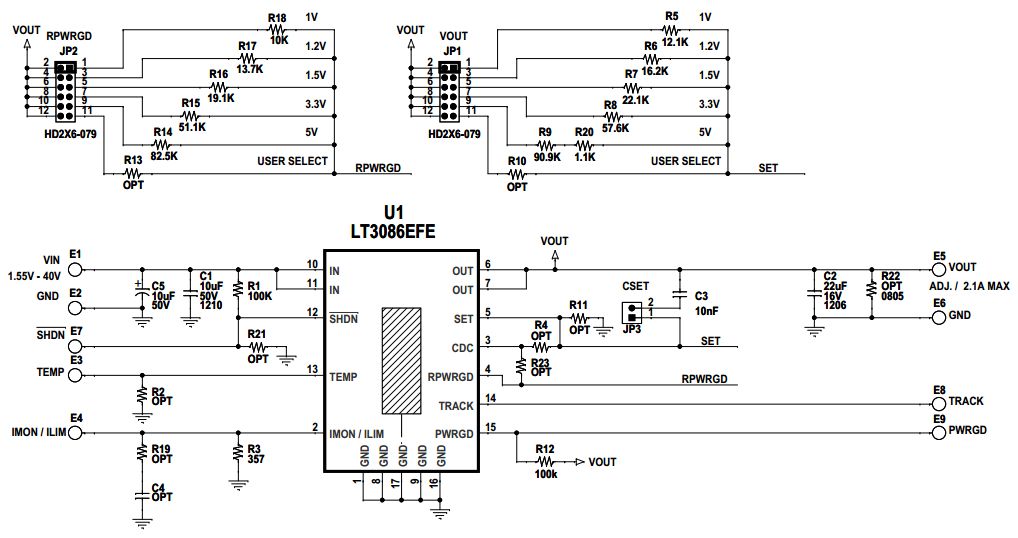

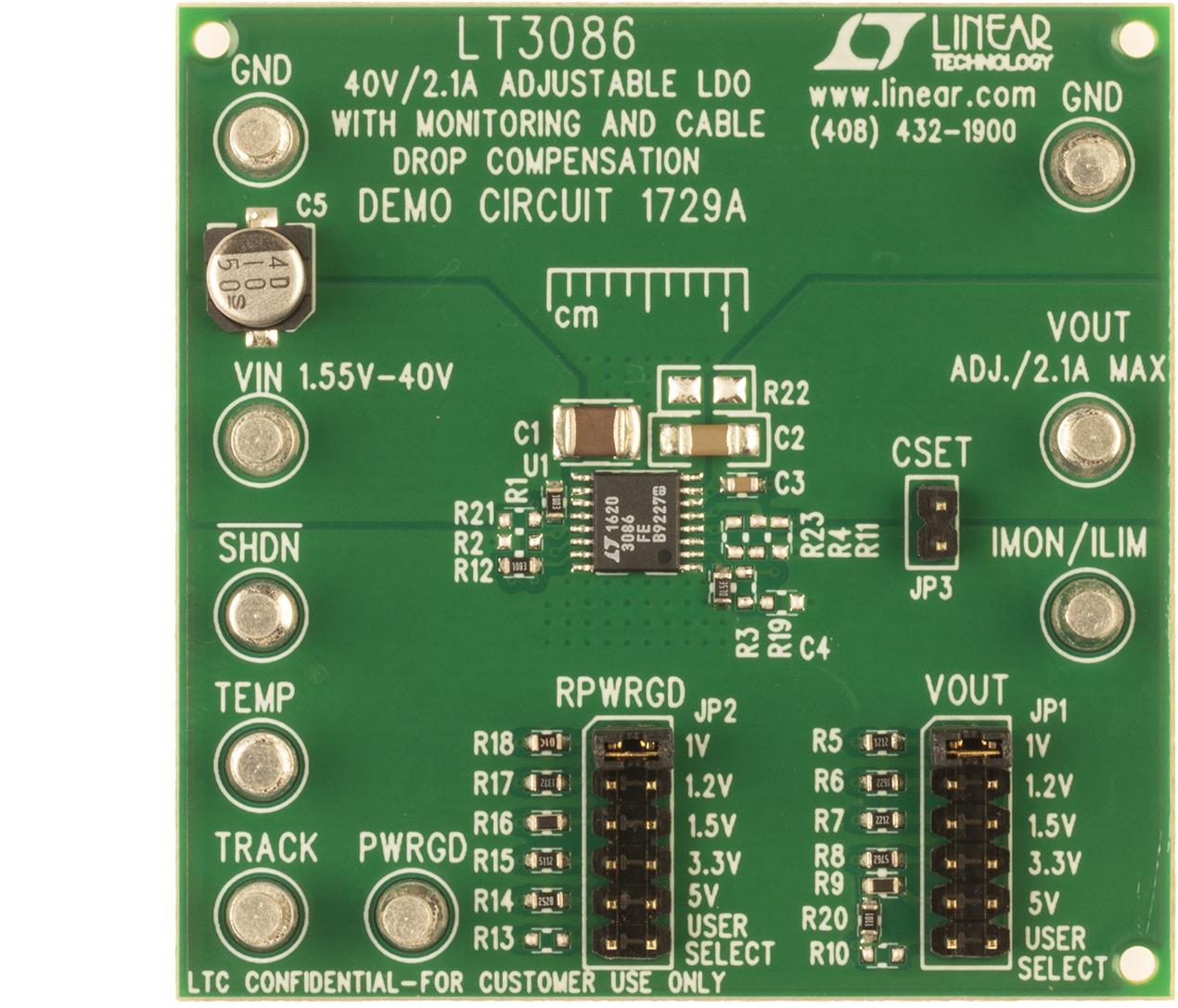

DC1729A, Demonstration Board using LT3086, 40V, 2.1A Low Dropout Adjustable Linear Regulator with Monitoring and Cable Drop Compensation
Referenzdesign unter Verwendung des Teils LT3086EFE#PBF von Analog Devices
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Power Supplies
- Switching Power Supply
- USB Wireless
Beschreibung
- DC1729A, Demonstration Board using LT3086, 40V, 2.1A Low Dropout Adjustable Linear Regulator with Monitoring and Cable Drop Compensation. The device is designed with multiple features and operates over a wide 1.4V to 40V input supply range. The LT3086 requires only one resistor to set the output voltage from 0.4V to 32V and it is stable with ceramic output capacitors requiring a minimum of 10 uF
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage1.55 to 40 V
-
Output Voltage1|1.2|1.5|3.3|5|12 V
-
Output Current2.1 A
-
TopologyLDO
Empfohlene Bauteile (1)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT3086EFE#PBF | Analog Devices | Linear Regulators | LDO Regulator Pos 0.4V to 32V 2.1A 16-Pin TSSOP EP Tube | In den Warenkorb | |
