DC1877A, Demo Board for the LTC3630AEDHC High Efficiency High Voltage 500mA Synchronous Step-Down Converter
Referenzdesign unter Verwendung des Teils LTC3630AEDHC#PBF von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Automotive and Transportation
- Industrial Control
- Military and Avionics Imaging
- Portable
- Portable Medical Devices
Beschreibung

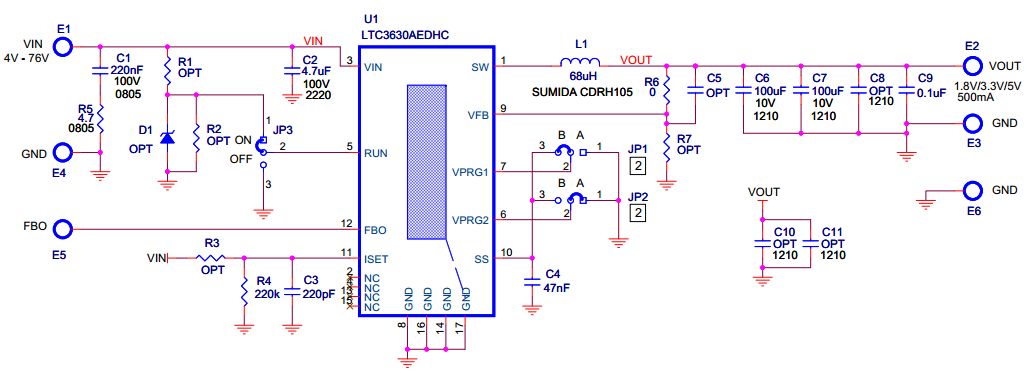

- DC1877A, Demo Board for the LTC3630AEDHC High Efficiency High Voltage 500mA Synchronous Step-Down Converter. The Demonstration circuit 1877A is a 500mA output DC/DC power supply featuring the LTC3630A (DFN package), with 4V to 76V input range. The LTC3630A features high efficiency Burst Mode operation and includes internal high and low side power switches. The board provides jumper selected output voltages of 1.8V, 3.3V, 5V and an option for additional voltages. LTC3630A has internal soft-start and a provision for increasing soft-start time
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage4 to 76 V
-
Output Voltage1.8|3.3|5 V
-
Output Current0.5 A
-
Efficiency91 %
-
TopologyBuck
Empfohlene Bauteile (1)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC3630AEDHC#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 76V Synchronous Step Down Single-Out 0.8V to 76V/1.8V/3.3V/5V 0.5A 16-Pin DFN EP Tube | In den Warenkorb | |
