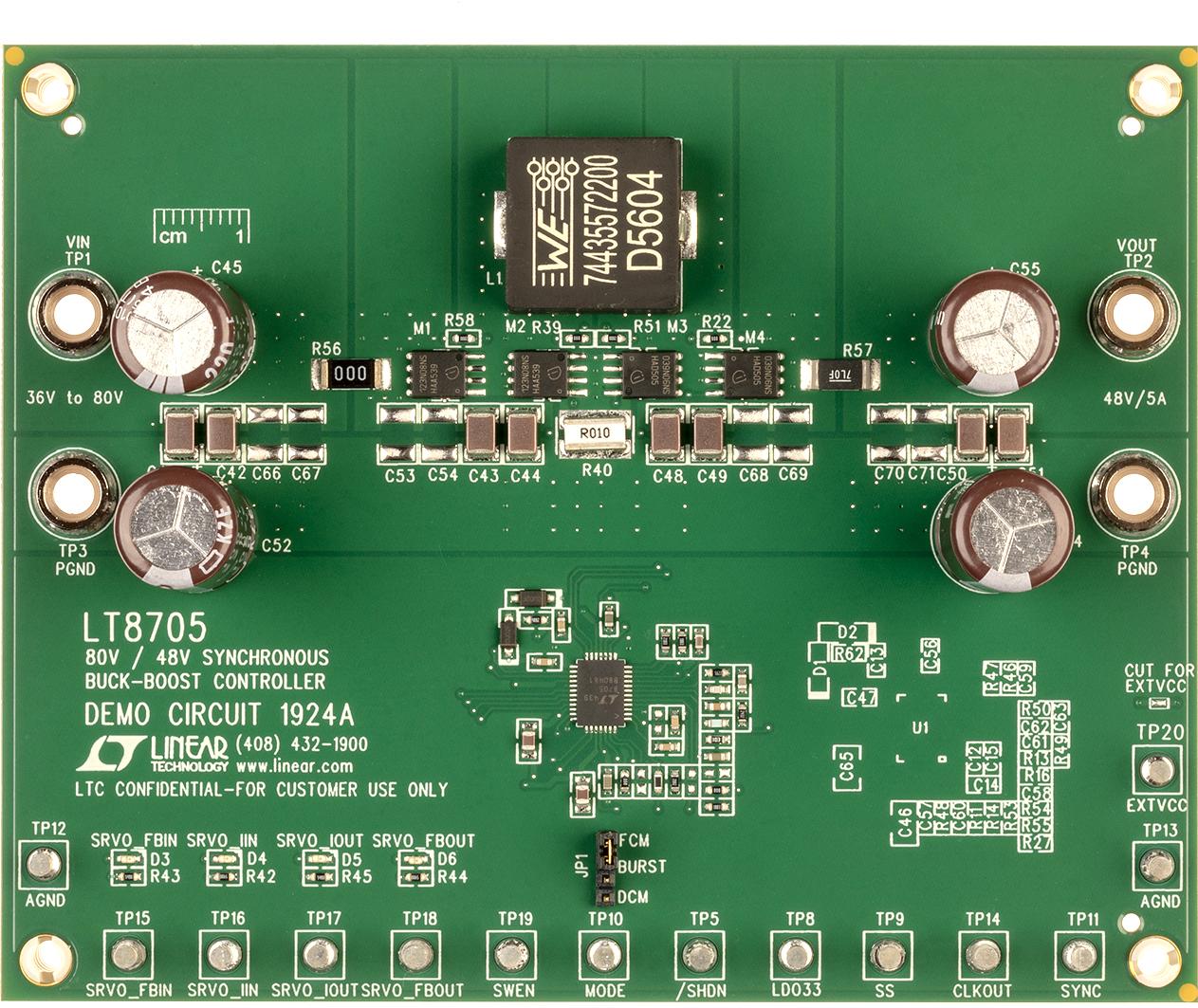

DC1924A, Demonstration Board using LT8705, 80V VIN and VOUT synchronous 4-switch buck-boost DC-DC controller
Referenzdesign unter Verwendung des Teils LT8705EUHF von Analog Devices
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Buck-Boost Converter
Beschreibung
- DC1924A, Demonstration Board using LT8705, 80V VIN and VOUT synchronous 4-switch buck-boost DC-DC controller. It can operate from input voltages above, below or equal to the output voltage. The demo board input range is 36V to 80V. The output is optimized for 48V, 5A. Additional input bulk capacitance may be needed, subject to the source impedance. The part has integrated input current, input voltage, output current and output voltage feedback loops and is capable of bi-directional operation
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage36 to 80 V
-
Output Voltage48 V
-
Output Current5 A
-
Efficiency97 %
-
TopologyBuck Boost
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT8705EUHF#PBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down/Step Up 400kHz 38-Pin QFN EP Tube | In den Warenkorb | |
|
|
LT8705EUHF#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down/Step Up 400kHz 38-Pin QFN EP T/R | In den Warenkorb | |
