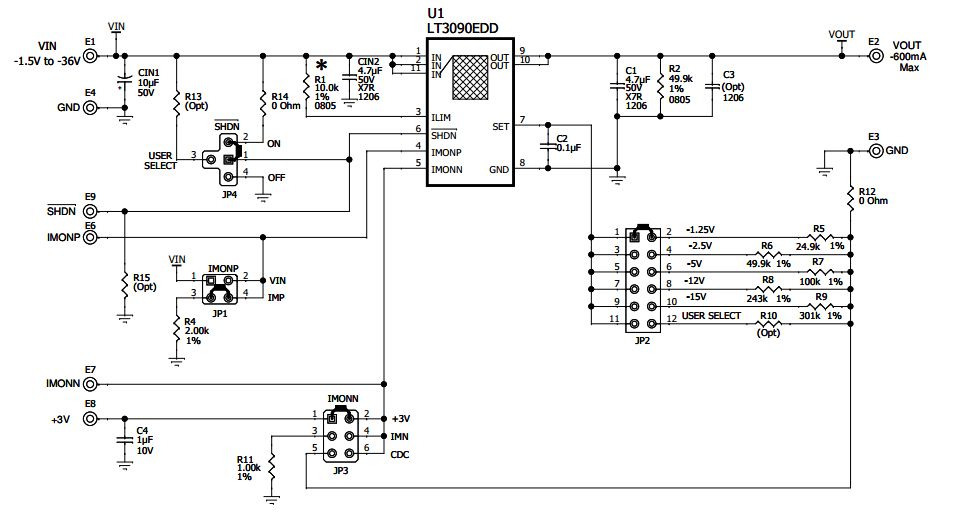

DC1948A, Demonstration Board using LT3090, -36V, 600mA Negative Linear Regulator with Programmable Current Limit
Referenzdesign unter Verwendung des Teils LT3090EDD von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Industrial
- Instrumentation and Measurement
- Power Supplies
- Switching Power Supply
Beschreibung
- DC1948A, Demonstration Board using LT3090, -36V, 600mA Negative Linear Regulator with Programmable Current Limit. This device is designed for applications requiring negative output voltage, high current with no heat sink, output adjustability to zero and low dropout voltage. The LT3090 features fast transient response, high PSRR and low output noise. The LT3090 supplies 600mA at a typical dropout voltage of 300mV. Operating quiescent current is nominally 1mA and drops to << 1 uA in shut-down single resistor adjusts the LT3090s precision programmable current limit
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage-36 to -1.5 V
-
Output Voltage-18|-15|-12|-5|-2.5|-1.25 V
-
Output Current0.6 A
-
TopologyLDO
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT3090EDD#TRPBF | Analog Devices | Linear Regulators | LDO Regulator Neg 0V to -32V 0.6A 10-Pin DFN EP T/R | In den Warenkorb | |
|
|
LT3090EDD#PBF | Analog Devices | Linear Regulators | LDO Regulator Neg 0V to -32V 0.6A 10-Pin DFN EP Tube | In den Warenkorb | |
