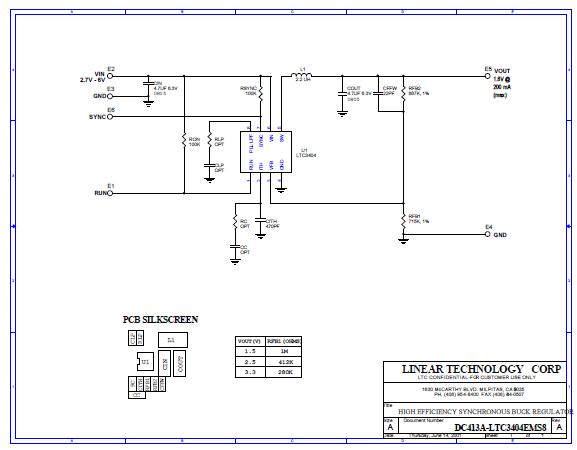

DC413A, Demo Board for featuring LTC3404EMS8,1.4MHz High Efficiency Monolithic Synchronous Step-Down Regulator, Vin=2.7V-6V, Vout=1.8V @ 200mA
Referenzdesign unter Verwendung des Teils LTC3404EMS8 von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Backplane Distributed Power
- Cellular Phone
- Portable
- Wireless Modem
Beschreibung
- DC413A, Demo Board for featuring LTC3404EMS8, 1.4 MHz High Efficiency Monolithic Synchronous Step-Down Regulator, Vin=2.7V-6V, Vout=1.8V @ 200mA
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage2.7 to 6 V
-
Output Voltage1.8 V
-
Output Current0.2 A
-
TopologyBuck
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC3404EMS8#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.65V to 6V Synchronous Step Down Single-Out 0.8V to 6V 0.6A 8-Pin MSOP T/R | In den Warenkorb | |
|
|
LTC3404EMS8 | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.65V to 6V Synchronous Step Down Single-Out 0.8V to 6V 0.6A 8-Pin MSOP | In den Warenkorb | |
|
|
LTC3404EMS8#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.65V to 6V Synchronous Step Down Single-Out 0.8V to 6V 0.6A 8-Pin MSOP Tube | In den Warenkorb | |
|
|
LTC3404EMS8#TR | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.65V to 6V Synchronous Step Down Single-Out 0.8V to 6V 0.6A 8-Pin MSOP T/R | In den Warenkorb | |
