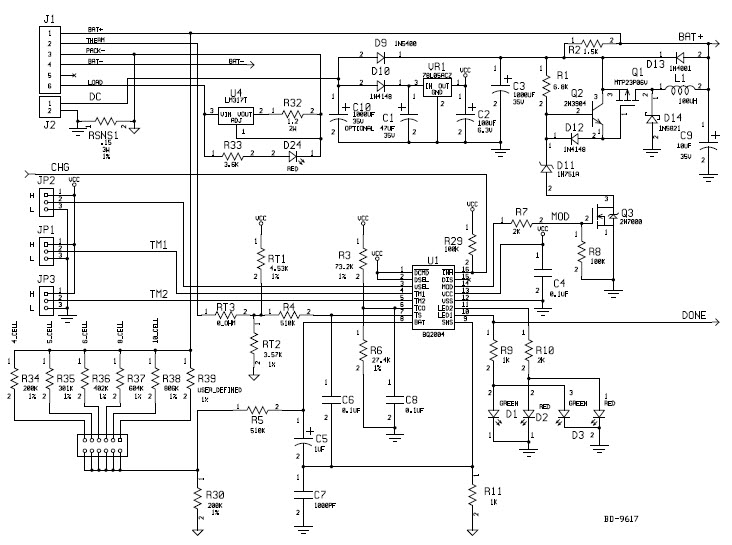

EV2014x evaluation system provides a development and evaluation environment for the bq2014 Gas Gauge IC
Referenzdesign unter Verwendung des Teils BQ2004 von Texas Instruments
Bilder
1 / 2
Für Endprodukte
- Portable
Beschreibung
- EV2014x evaluation system provides a development and evaluation environment for the bq2014 Gas Gauge IC and the bq2004 Fast Charge IC. The EV2014x incorporates bq2014, a bq2004, and all the external components required to accurately monitor the capacity and reliably fast charge 4 to 10 NiCd or NiMH cells
Haupteigenschaften
-
Battery TypeNickel-Cadmium|Nickel-Metal Hydride
-
Input Voltage24 V
-
Number of Battery Cells4 to 10
Empfohlene Bauteile (23)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
BQ2014HSNG4 | Texas Instruments | Battery Management ICs | Fuel Gauge NiCd/NiMH 16-Pin SOIC Tube | In den Warenkorb | |
|
|
BQ2014SN | Texas Instruments | Battery Management ICs | Fuel Gauge NiCd/NiMH 16-Pin SOIC | In den Warenkorb | |
|
|
BQ2014HSNTRG4 | Texas Instruments | Battery Management ICs | Fuel Gauge NiCd/NiMH 16-Pin SOIC T/R | In den Warenkorb | |
|
LM317TG | onsemi | Linear Regulators | Standard Regulator Pos 1.2V to 37V 0.4A 3-Pin(3+Tab) TO-220 Tube | In den Warenkorb | |
|
|
BQ2014SN-D120TRG4 | Texas Instruments | Battery Management ICs | Fuel Gauge NiCd/NiMH 16-Pin SOIC T/R | In den Warenkorb | |
|
|
BQ2014HSN | Texas Instruments | Battery Management ICs | Fuel Gauge NiCd/NiMH 16-Pin SOIC Tube | In den Warenkorb | |
|
|
BQ2014SN-D120G4 | Texas Instruments | Battery Management ICs | Gas Gauge NiCD/NiMH 2.4V 16-Pin SOIC Tube | In den Warenkorb | |
|
|
BQ2014SN-D120TR | Texas Instruments | Battery Management ICs | Fuel Gauge NiCd/NiMH 16-Pin SOIC T/R | In den Warenkorb | |
|
|
BQ2004ESN | Texas Instruments | Battery Management ICs | Switching Battery Charger NiCd/NiMH 2000mA 0V to 5.5V 16-Pin SOIC Tube | In den Warenkorb | |
|
BQ2004PNG4 | Texas Instruments | Battery Management ICs | Switching Battery Charger NiCD/NiMH 2000mA 16-Pin PDIP Tube | In den Warenkorb | |
|
|
BQ2004ESNTRG4 | Texas Instruments | Battery Management ICs | Switching Battery Charger NiCd/NiMH 2000mA 0V to 5.5V 16-Pin SOIC T/R | In den Warenkorb | |
|
|
BQ2004SN | Texas Instruments | Battery Management ICs | Switching Battery Charger NiCd/NiMH 2000mA 0V to 5.5V 16-Pin SOIC Tube | In den Warenkorb | |
