EVAL-ADF4206-7EB1, Evaluation Board for Dual PLL Frequency Synthesizer
Referenzdesign unter Verwendung des Teils ADF4206 von Analog Devices
Bilder
1 / 3
Für Endprodukte
- Test Equipment
- Wireless
- Wireless Base Station
- Wireless LAN
Beschreibung

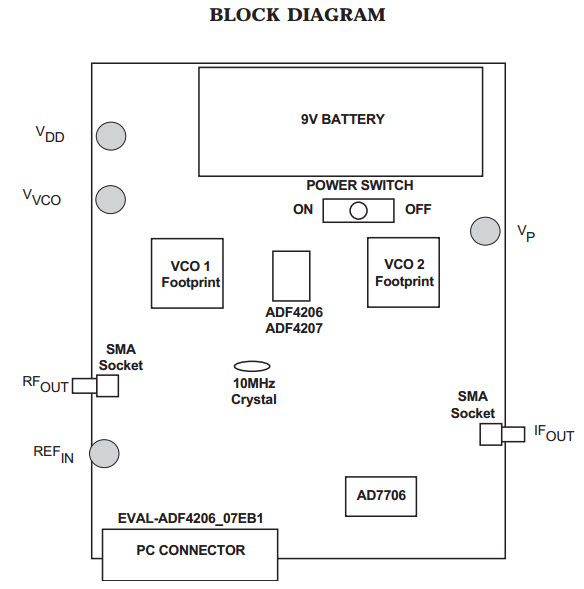

- EVAL-ADF4206-7EB1, Evaluation Board designed to allow the user to evaluate the performance of the ADF4206 or the ADF4207 Frequency Synthesizers for PLL's (Phase Locked Loops). It contains the footprint for the ADF4206 and ADF4207 synthesizers, a pc connector, SMA connector for the reference input, power supplies and RF output. There is also a footprint for the loop filters and VCO's on the board. A cable is included with the board to connect to a pc printer port. The package also contains windows software to allow easy programming of the synthesizer
