FPDXSDUR-43USB, FPD-Link LVDS to FPD-Link II Embedded Clock LVDS Converter DS99R421 Evaluation Kit

Beschreibung

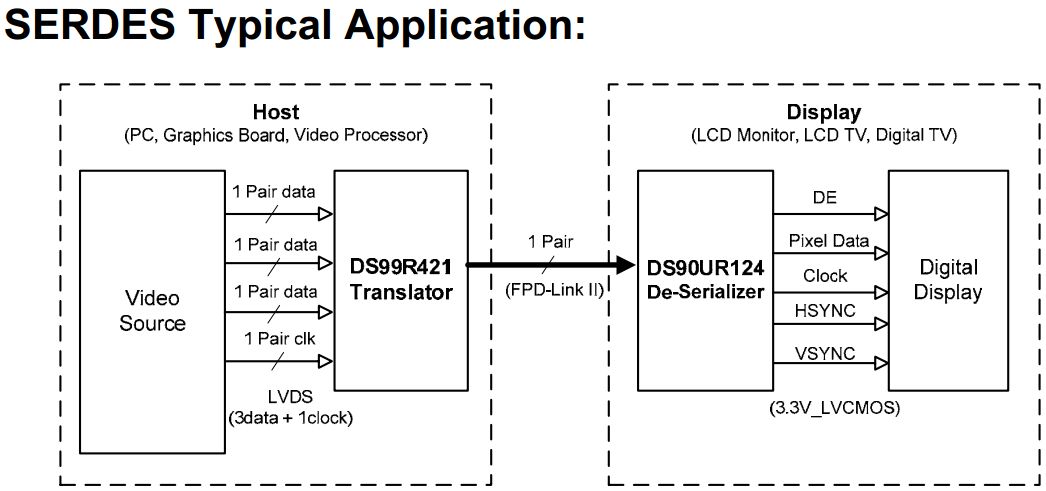

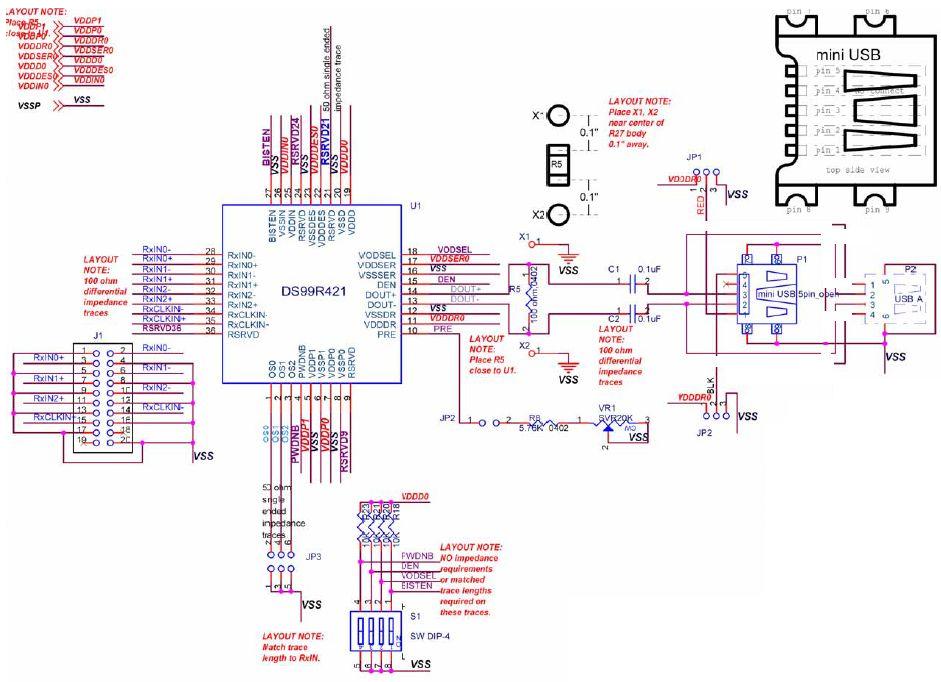

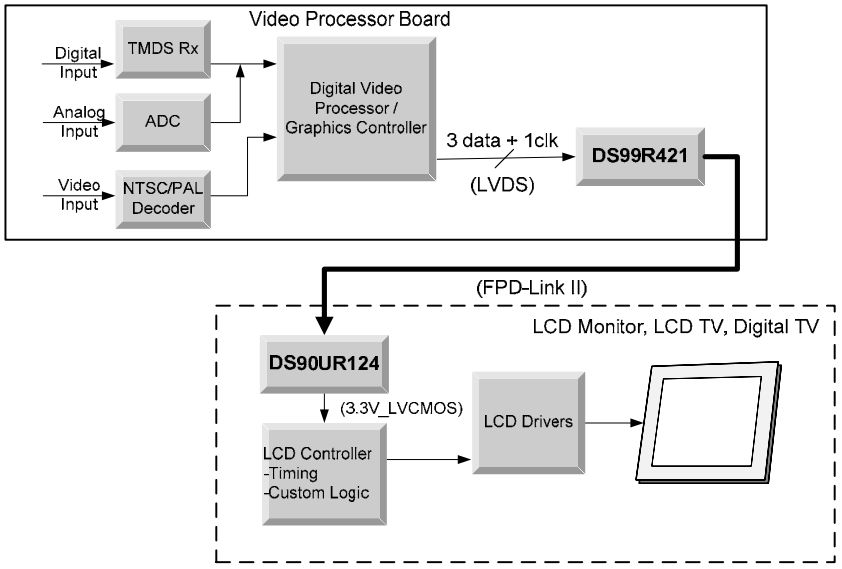

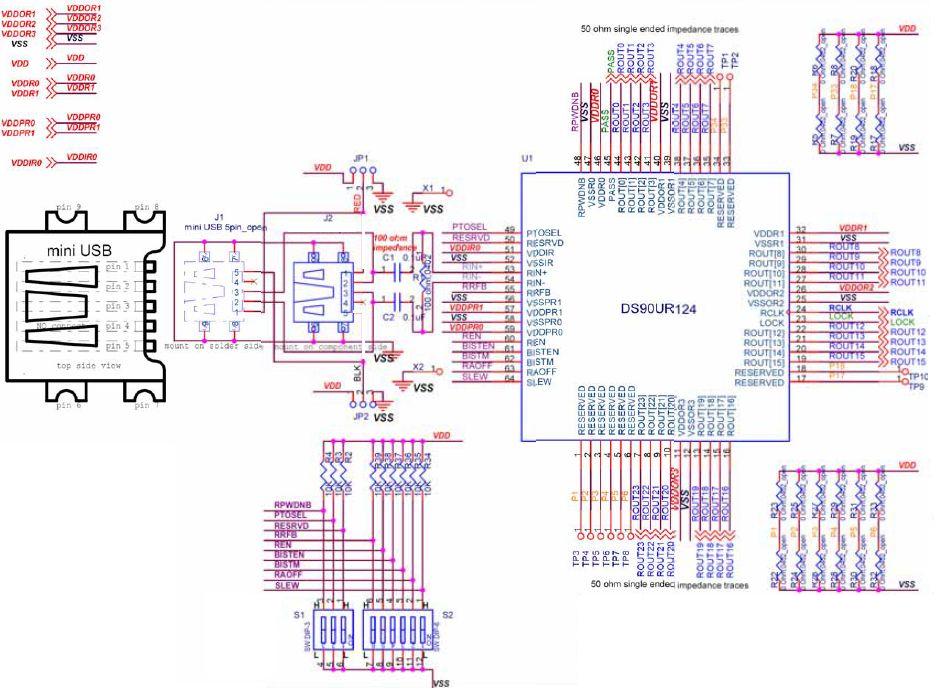

• FPDXSDUR-43USB, Evaluation Kit designed to demonstrated performance and capabilities of the DS99R421 FPD-Link to FPD-Link II Embedded Clock LVDS Converter. The DS99R421 Serializer board accepts FPD Link LVDS (3 Data + 1 Clock) input signals and provides single serialized FPD-Link II LVDS data pair as an output. The DS90UR124 Deserializer board accepts the FPD-Link II LVDS serialized data stream and converts the data back into parallel LVCMOS signals and clock. USB cable is provided as a generic medium for the high speed data link
