LMH730316, Evaluation Board using SOT23-6 High performance Amplifier high speed and low distortion Operational Amplifiers
Referenzdesign unter Verwendung des Teils LMH6611MK von Texas Instruments
Bilder
1 / 2
Für Endprodukte
- Automotive and Transportation
- Communications and Telecom
- Computers and Peripherals
- Consumer Electronics
- Energy
- Industrial
- Lighting
- Medical and Healthcare
- Security
- Video and Imaging
Beschreibung

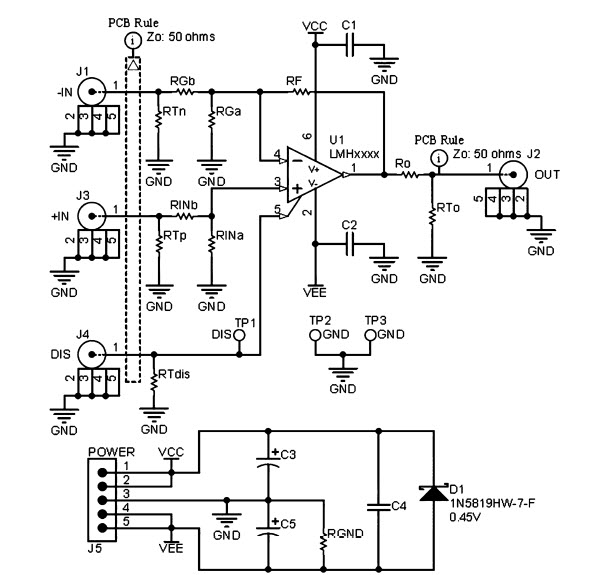

- LMH730316, Evaluation Board is designed to aid in the characterization of National Semiconductors high speed and / or low distortion Operational Amplifiers and is sold without any components installed for easy application adoption. This 4 layer board is designed to improve speed and reduce harmonic distortion by careful placement and routing of components and traces. The board uses end mounted SMA connectors. On the +IN input, resistor RINa provides input termination
Haupteigenschaften
-
Number of SuppliesSingle
Empfohlene Bauteile (6)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LMH6611MKE/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single GP R-R O/P ±5.5V/11V 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LMH6611MKX/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single GP R-R O/P ±5.5V/11V 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LMH6611MKX/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single GP R-R O/P ±5.5V/11V 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LMH6611MK/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single GP R-R O/P ±5.5V/11V 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LMH6611MKE/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single GP R-R O/P ±5.5V/11V 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LMH6611MK/NOPB | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single GP R-R O/P ±5.5V/11V 6-Pin TSOT-23 T/R | In den Warenkorb | |
