LT1372, 3-Cell to 3.3V/300mA SEPIC Converter
Referenzdesign unter Verwendung des Teils LT1372 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Barcode Scanner
- Laptop
- Notebook
- Personal Digital Assistant
- Portable
- Wireless
Beschreibung

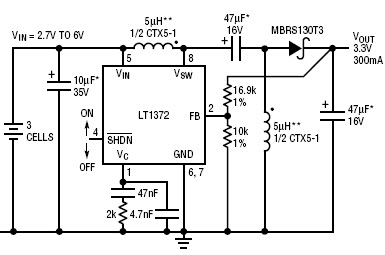

- Circuit shows LT1372, 3-Cell to 3.3V/300mA SEPIC Converter
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage2.7 to 6 V
-
Output Voltage3.3 V
-
Output Current0.3 A
-
Efficiency74 %
-
TopologySingle-Ended Primary Inductance
Empfohlene Bauteile (11)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT1372IS8#TR | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
LT1372CS8#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
LT1372IS8 | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin SOIC N | In den Warenkorb | |
|
LT1372CN8 | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin PDIP N | In den Warenkorb | |
|
|
LT1372IS8#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin SOIC N Tube | In den Warenkorb | |
|
|
LT1372CS8 | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin SOIC N | In den Warenkorb | |
|
|
LT1372CN8#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin PDIP N Tube | In den Warenkorb | |
|
|
LT1372CS8#TR | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
LT1372IS8#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
LT1372CS8#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin SOIC N Tube | In den Warenkorb | |
|
|
LT1372IN8#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.7V to 30V Non-Inv/Inv/Step Up/Step Down Single-Out 35V 8-Pin PDIP N Tube | In den Warenkorb | |
