LT1676, Wide Input Range, High Efficiency Step-Down Switching Regulator
Referenzdesign unter Verwendung des Teils LT1776 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Automotive and Transportation
- Cellular Phone
- Telecom Power Supply
Beschreibung

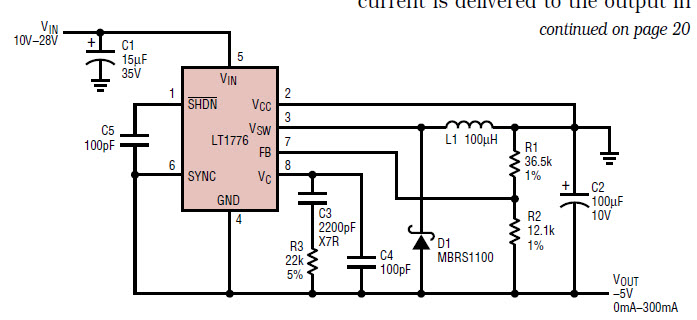

- Circuit shows LT1776, Positive-to-negative converter topology, generates a single negative output voltage from a positive input voltage, using just an ordinary inductor
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage10 to 28 V
-
Output Voltage-5 V
-
Output Current0 to 0.3 A
-
TopologyInverting
