LT3464ETS8 Demo Board, 2 Circuits, Boost Converters, 2.3V to 10V Input, Vout2 = 15V/9-25mA
Referenzdesign unter Verwendung des Teils LT3464ETS8 von Analog Devices
Bilder

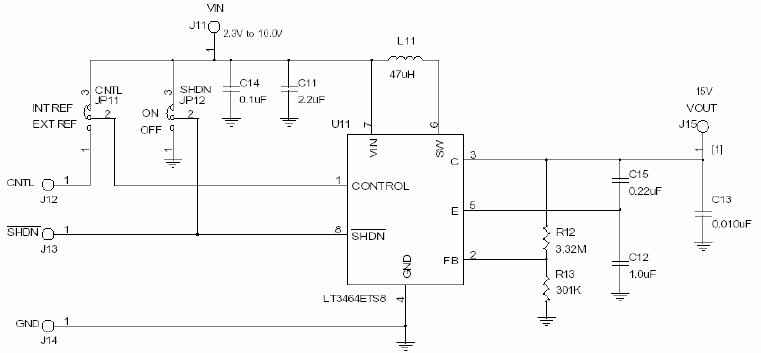

1 / 1
Zugehörige Dokumente
Für Endprodukte
- Cellular Phone
- Digital Camera
- Portable Computers
Beschreibung
- Demonstration circuit DC612A features the LT3464ETS8 high performance boost converter circuit. The Burst Mode Operation of the LT3464 allows the circuits to have a low input current at no load and high efficiency over a broad current range making it an ideal part for LCD bias applications as well as cellular phones, digital cameras and handheld computers
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage2.3 to 10 V
-
Output Voltage15 V
-
Output Current0.025 A
-
Efficiency77 %
-
TopologyBoost
Empfohlene Bauteile (6)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT3464ETS8 | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.3V to 10V Step Up Single-Out 1.25V to 34V 0.14A 8-Pin TSOT-23 | In den Warenkorb | |
|
|
LT3464ETS8#TR | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.3V to 10V Step Up Single-Out 1.25V to 34V 0.14A 8-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LT3464ETS8#TRMPBF (CUT REEL) | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.3V to 10V Step Up Single-Out 1.25V to 34V 0.14A 8-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LT3464ETS8#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.3V to 10V Step Up Single-Out 1.25V to 34V 0.14A 8-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LT3464ETS8#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.3V to 10V Step Up Single-Out 1.25V to 34V 0.14A 8-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LT3464ETS8#TRMPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.3V to 10V Step Up Single-Out 1.25V to 34V 0.14A 8-Pin TSOT-23 T/R | In den Warenkorb | |
