LTC1645 Dual Channel Hot-Swap Controller/Power Sequencer Allows Insertion Into a Live Backplane
Referenzdesign unter Verwendung des Teils LTC1645 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- ATCA Backplane
- Backplane Distributed Power
Beschreibung

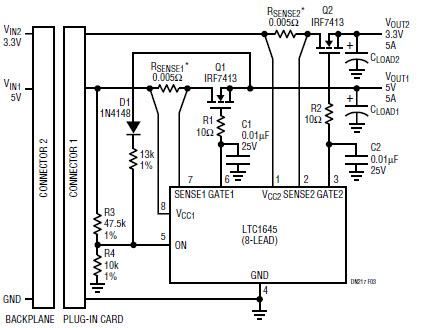

- Circuit shows LTC1645 In a Hot-Swap Application Configured to Ramp Up VOUT1 Before VOUT2. VOUT1 is initially discharged and D1 is reverse-biased, thus the voltage at the ON pin is determined only by VCC1 through the resistor divider R3 and R4
Haupteigenschaften
-
Input Voltage3.3|5 V
-
Output Voltage3.3|5 V
-
Output Current5 A
