LTC1734ES6-4.2 Demo Board, Li-Ion Battery Charger
Referenzdesign unter Verwendung des Teils LTC1734ES6-4.2 von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Cellular Phone
- Digital Camera
- Docking Station
- Portable Computers
Beschreibung

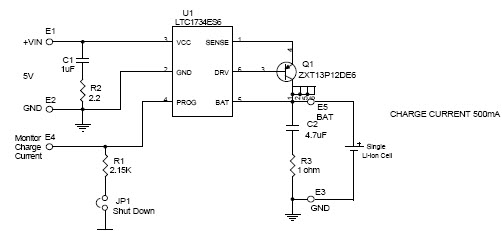

- Demonstration board DC370A-B features LTC1734ES6-4.2 Linear Battery Charger for One Li-Ion Cell at 4.2V. The LTC1734 used on this demo board drives an inexpensive PNP transistor in a linear regulator configuration that provides up to 700mA of charge current
Haupteigenschaften
-
Battery TypeLithium-Ion
-
Input Voltage4.7 to 7 V
-
Output Voltage4.2 V
-
Number of Battery Cells1
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC1734ES6-4.2 | Analog Devices | Battery Management ICs | Linear Battery Charger Controller Li-Ion/Li-Pol/NiCd/NiMH 700mA 4.2V 6-Pin TSOT-23 | In den Warenkorb | |
|
|
LTC1734ES6-4.2#TRMPBF | Analog Devices | Battery Management ICs | Linear Battery Charger Controller Li-Ion/Li-Pol/NiCd/NiMH 700mA 4.2V 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1734ES6-4.2#TR | Analog Devices | Battery Management ICs | Linear Battery Charger Controller Li-Ion/Li-Pol/NiCd/NiMH 700mA 4.2V 6-Pin TSOT-23 T/R | In den Warenkorb | |
|
|
LTC1734ES6-4.2#TRPBF | Analog Devices | Battery Management ICs | Linear Battery Charger Controller Li-Ion/Li-Pol/NiCd/NiMH 700mA 4.2V 6-Pin TSOT-23 T/R | In den Warenkorb | |
