LTC3122EDE Demo Board, High Efficiency 15V 2.5A Synchronous Step-Up Converter
Referenzdesign unter Verwendung des Teils LTC3122EDE von Analog Devices
Bilder
1 / 1
Für Endprodukte
- DC Motor
- Industrial Control
Beschreibung

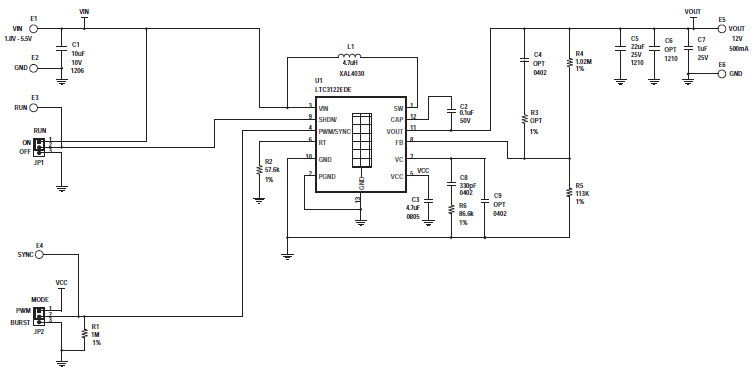

- Demonstration circuit 1764A is a 5.5V input, 12V output at 800mA DC/DC power supply featuring the LTC3122 which includes internal high and low side 2.5A switches and features selectable PWM or Burst Mode operation for high efficiency at low output current
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage1.8 to 5.5 V
-
Output Voltage12 V
-
Output Current0.8 A
-
Efficiency90 %
-
TopologyBoost
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC3122EDE#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Synchronous Step Up Single-Out 2.2V to 15V 2.5A 12-Pin DFN EP T/R | In den Warenkorb | |
|
|
LTC3122EDE#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Synchronous Step Up Single-Out 2.2V to 15V 2.5A 12-Pin DFN EP Tube | In den Warenkorb | |
