LTC3736, 2.5V/5A and 1.2V/5A Regulator with Rail Tracking
Referenzdesign unter Verwendung des Teils LTC3736EUF von Analog Devices
Bilder
1 / 1
Für Endprodukte
- FPGA Solutions
- Industrial Asset Tracking
Beschreibung

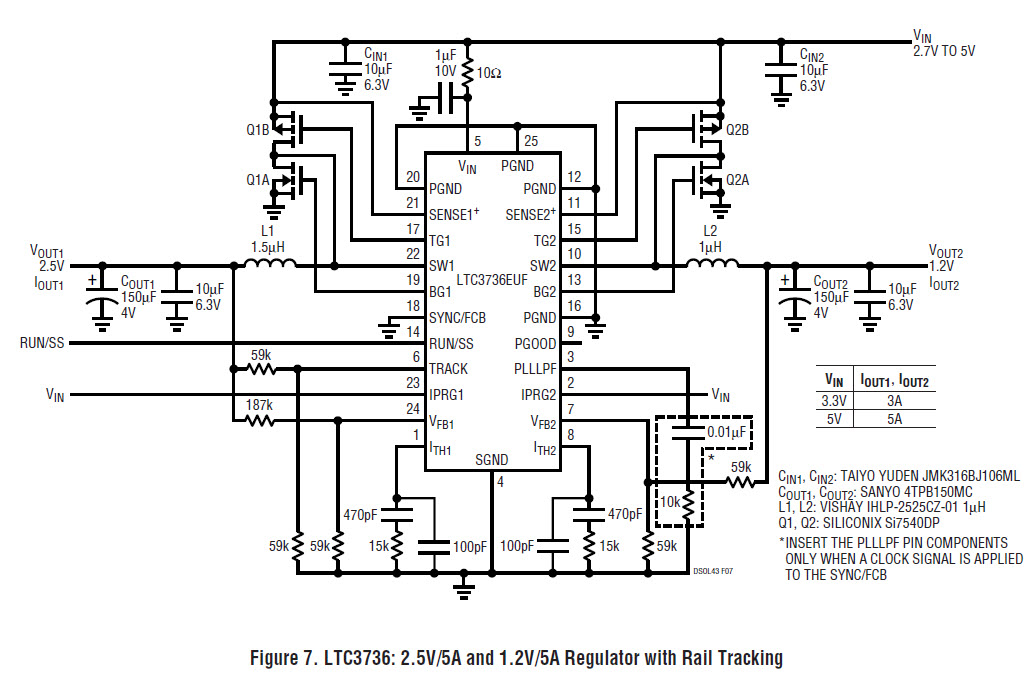

- Circuit shows LTC3736 is a dual output-dual phase regulator, that provide a 2.5V/1.2V dual output and powered from a local 3.3V or 5V rail
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage2.7 to 5.5 V
-
Output Voltage1.2|2.5 V
-
Output Current5@1.2V|5@2.5V A
-
Efficiency92 %
-
TopologyBuck
Empfohlene Bauteile (8)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC3736EUF#TR | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 850kHz 24-Pin QFN EP T/R | In den Warenkorb | |
|
|
LTC3736EUF-2#PBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 850kHz 24-Pin QFN EP Tube | In den Warenkorb | |
|
|
LTC3736EUF-2#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 850kHz 24-Pin QFN EP T/R | In den Warenkorb | |
|
|
LTC3736EUF-2 | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 850kHz 24-Pin QFN EP | In den Warenkorb | |
|
|
LTC3736EUF#PBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 850kHz 24-Pin QFN EP Tube | In den Warenkorb | |
|
|
LTC3736EUF-1#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 580kHz 24-Pin QFN EP T/R | In den Warenkorb | |
|
|
LTC3736EUF#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 850kHz 24-Pin QFN EP T/R | In den Warenkorb | |
|
|
LTC3736EUF-1#PBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 580kHz 24-Pin QFN EP Tube | In den Warenkorb | |
