LTC4221 Demo Board, Dual Hot-Swap Controller/Power Sequencer w/ Dual Speed, Dual Level Fault Protection
Referenzdesign unter Verwendung des Teils LTC4221CGN von Analog Devices
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Desktops and Servers
Beschreibung

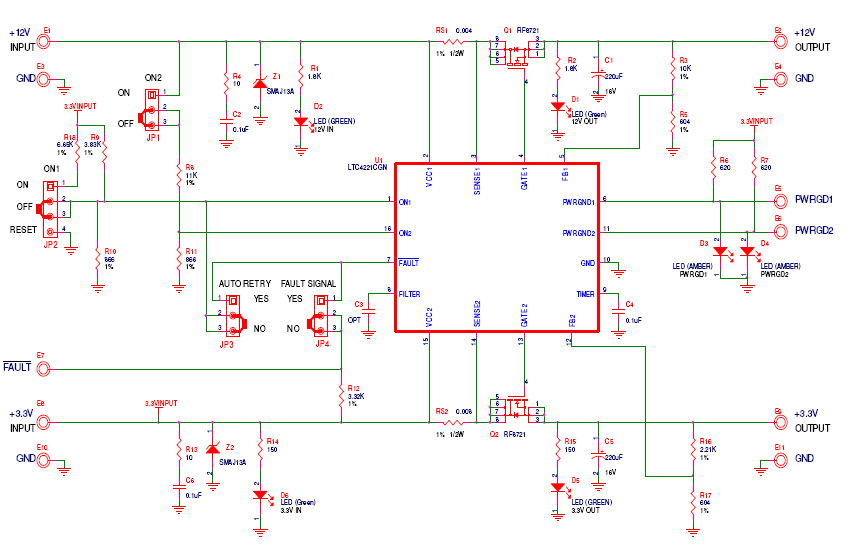

- Demonstration circuit DC1355 is a dual Hot-Swap circuit featuring the LTC4221 Dual Hot-Swap Controller/Power Sequencer with Dual Speed, Dual Level Fault Protection. DC1355 facilitates evaluation of the LTC4221 performance characteristics including supply ramp-up transients, steady state operation, and overcurrent fault conditions
Haupteigenschaften
-
Input Voltage3.3|12 V
-
Output Voltage3.3|12 V
-
Output Current3@3.3V|6@12V A
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC4221CGN#TRPBF | Analog Devices | Hot Swap Controllers | Hot Swap Controller 2-CH 13.5V N-Channel Positive Low Voltage 16-Pin SSOP N T/R | In den Warenkorb | |
|
|
LTC4221CGN#PBF | Analog Devices | Hot Swap Controllers | Hot Swap Controller 2-CH 13.5V N-Channel Positive Low Voltage 16-Pin SSOP N Tube | In den Warenkorb | |
