LTM8062EV Demo Board, 32V, 2A module Li-Ion Battery Charger with MPPT
Referenzdesign unter Verwendung des Teils LTM8062EV von Analog Devices
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Automotive and Transportation
- Desktop PC
- Industrial Control
- Solar Power
Beschreibung

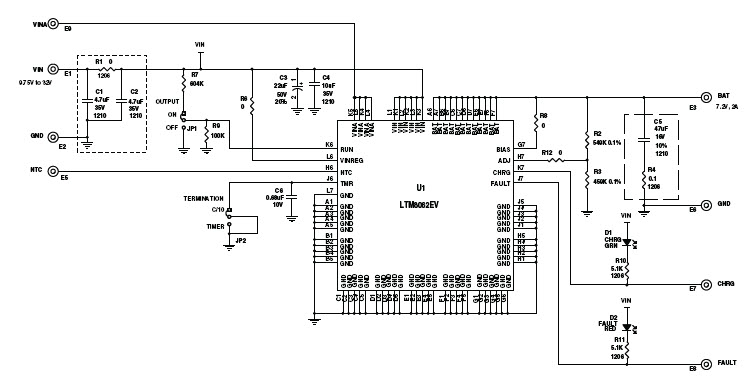

- Demonstration circuit DC1621A features the LTM8062, a 32V, 2A module power tracking battery charger. The demonstration circuit is designed to operate from a 9.75V to 32V input source, and to charge a 2-cell battery pack to a float voltage of 7.2V
Haupteigenschaften
-
Input Voltage9.75 to 32 V
-
Output Voltage7.19 to 7.3 V
-
Number of Battery Cells2
Empfohlene Bauteile (1)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTM8062EV#PBF | Analog Devices | Battery Management ICs | Switching Battery Charger Lead-Acid/Li-FePO4/Li-Ion/Li-Pol 2100mA 3.3V to 14.4V 77-Pin LGA Tray | In den Warenkorb | |
