LV24EVK01, Evaluation Kit for the DS92LV2421 and DS92LV2422 Channel Link II Serializer/Deserializer chipset
Referenzdesign unter Verwendung des Teils DS92LV2421 von Texas Instruments
Bilder
1 / 8
Für Endprodukte
- Automotive Vision Control
- Displays
- Industrial
- Medical Imaging
Beschreibung

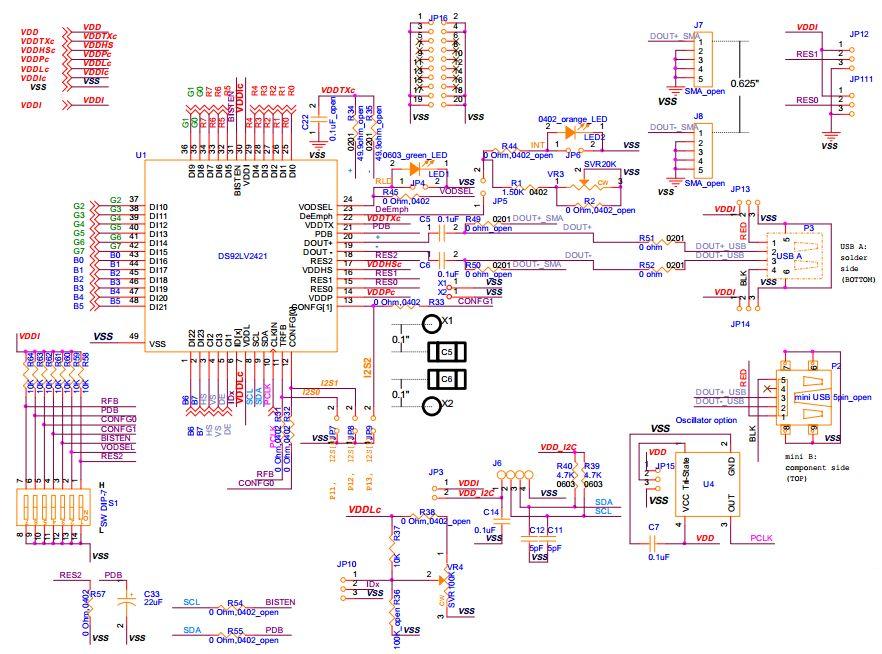

- LV24EVK01, Evaluation Kit designed to demonstrate performance and capabilities of the DS92LV2421 and DS92LV2422 Channel Link II Serializer/Deserializer chipset. The DS92LV2421 serializer board accepts LVCMOS input signals and provides a single serialized Channel Link II CML data pair as an output. The DS92LV2422 deserializer board accepts the CML serialized data stream and converts the data back into parallel LVCMOS signals. A USB cable is provided as a generic medium for the high speed data link
Empfohlene Bauteile (15)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LM1117IMP-ADJ/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.25V to 13.8V 0.8A 4-Pin(3+Tab) SOT-223 T/R | In den Warenkorb | |
|
|
LM1117IMP-ADJ/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.25V to 13.8V 0.8A 4-Pin(3+Tab) SOT-223 T/R | In den Warenkorb | |
|
DS92LV2422SQX/NOPB | Texas Instruments | LVDS | LVDS Deserializer 2100Mbps 0.52V 60-Pin WQFN EP T/R | In den Warenkorb | |
|
|
DS92LV2422SQX/NOPB | Texas Instruments | LVDS | LVDS Deserializer 2100Mbps 0.52V 60-Pin WQFN EP T/R | In den Warenkorb | |
|
|
DS92LV2422SQE/NOPB | Texas Instruments | LVDS | LVDS Deserializer 2100Mbps 0.52V 60-Pin WQFN EP T/R | In den Warenkorb | |
|
|
DS92LV2422SQE/NOPB | Texas Instruments | LVDS | LVDS Deserializer 2100Mbps 0.52V 60-Pin WQFN EP T/R | In den Warenkorb | |
|
|
DS92LV2422SQ/NOPB | Texas Instruments | LVDS | LVDS Deserializer 2100Mbps 0.52V 60-Pin WQFN EP T/R | In den Warenkorb | |
|
|
DS92LV2422SQ/NOPB | Texas Instruments | LVDS | LVDS Deserializer 2100Mbps 0.52V 60-Pin WQFN EP T/R | In den Warenkorb | |
|
DS92LV2421SQ/NOPB | Texas Instruments | LVDS | LVDS Serializer 2100Mbps 0.52V 48-Pin WQFN EP T/R | In den Warenkorb | |
|
|
DS92LV2421SQE/NOPB | Texas Instruments | LVDS | LVDS Serializer 2100Mbps 0.52V 48-Pin WQFN EP T/R | In den Warenkorb | |
|
|
DS92LV2421SQ/NOPB | Texas Instruments | LVDS | LVDS Serializer 2100Mbps 0.52V 48-Pin WQFN EP T/R | In den Warenkorb | |
|
|
DS92LV2421SQE/NOPB | Texas Instruments | LVDS | LVDS Serializer 2100Mbps 0.52V 48-Pin WQFN EP T/R | In den Warenkorb | |
