MAX31790EVKIT#, Evaluation Kit for the MAX31790 6-Channel PWM-Output Fan RPM Controller
Referenzdesign unter Verwendung des Teils MAX31790ATI+ von Analog Devices
Bilder
1 / 5
Für Endprodukte
- Networking
- Servers
- Telecom System
Beschreibung

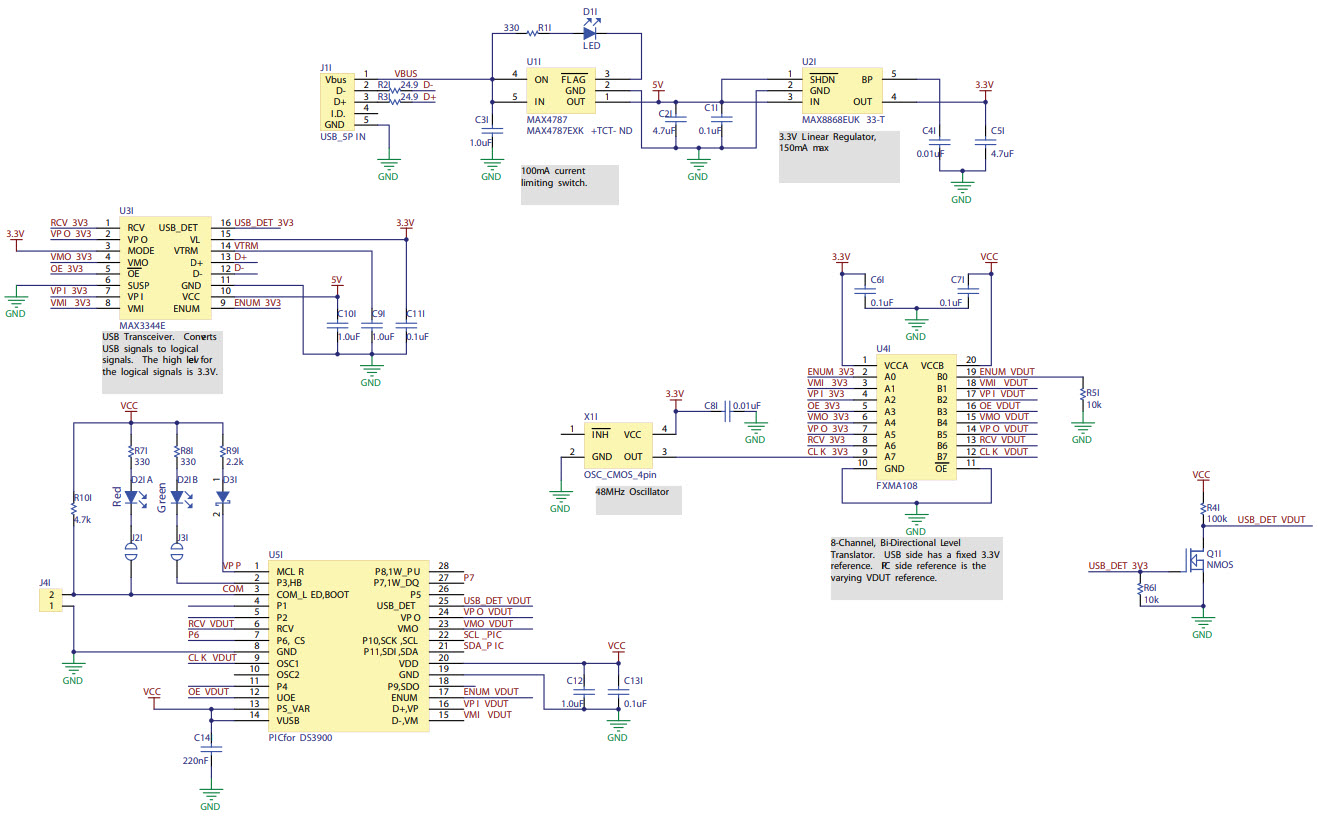

- MAX31790EVKIT#, Evaluation Kit (EV kit) provides the hardware and software graphical user interface (GUI) necessary to evaluate the MAX31790 6-channel PWM-output fan RPM controller. The EV kit includes a MAX31790ATI+ installed, as well as a USB-to-I2C interface. The USB-to-I2C master section on the EV kit labeled (MAXIM DS3900U HID) can be used to interact with the EV kit software and exercise the device's functionality. The EV kit provides headers and test points to connect user-supplied fans, but does not come with a fan included
Empfohlene Bauteile (18)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
PIC18LF2550-I/SO | Microchip Technology | Microcontrollers - MCUs | MCU 8-bit PIC RISC 32KB Flash 2.5V/3.3V/5V 28-Pin SOIC W Tube | In den Warenkorb | |
|
MAX4787EXK+ | Analog Devices | Current Limit Switches | Current Limit SW 1-IN 1-OUT 2.3V to 5.5V 0.24A 5-Pin SC-70 T/R | In den Warenkorb | |
|
MAX3344EEUE+ | Analog Devices | USB Transceivers | USB Transceiver 1TR 12Mbps 16-Pin TSSOP Tube | In den Warenkorb | |
|
|
MAX3344EEUE+ | Analog Devices | USB Transceivers | USB Transceiver 1TR 12Mbps 16-Pin TSSOP Tube | In den Warenkorb | |
|
|
MAX4787EXK+T | Analog Devices | Current Limit Switches | Current Limit SW 1-IN 1-OUT 2.3V to 5.5V 0.24A 5-Pin SC-70 T/R | In den Warenkorb | |
|
MAX8868EUK33+ | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R | In den Warenkorb | |
|
FXMA108BQX | onsemi | Level Translators | Voltage Level Translator 8-CH Bidirectional 20-Pin WQFN EP T/R | In den Warenkorb | |
|
|
MAX4787EXK+ | Analog Devices | Current Limit Switches | Current Limit SW 1-IN 1-OUT 2.3V to 5.5V 0.24A 5-Pin SC-70 T/R | In den Warenkorb | |
|
|
MAX8868EUK33+ | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R | In den Warenkorb | |
|
|
MAX3344EEUE+T | Analog Devices | USB Transceivers | USB Transceiver 1TR 12Mbps 16-Pin TSSOP T/R | In den Warenkorb | |
|
|
MAX8868EUK33+T | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R | In den Warenkorb | |
|
|
MAX8868EUK33+T | Analog Devices | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R | In den Warenkorb | |
