MIKROE-3476, MCU Card for STM32 STM32F767ZG
Referenzdesign unter Verwendung des Teils STM32F767ZGT6 von MikroElektronika
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Daughter Cards
Beschreibung

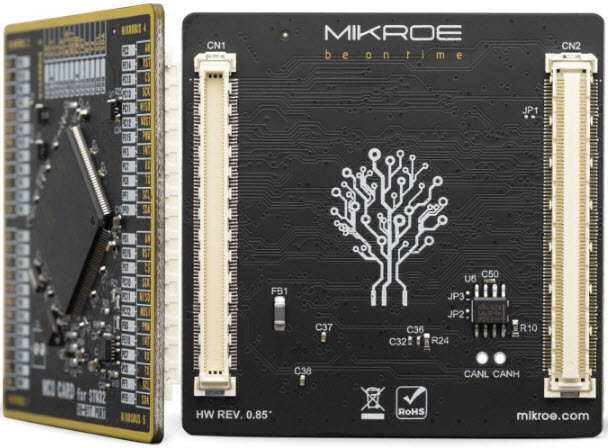

- MIKROE-3476, MCU Card is a standardized add-on board, which allows very simple installation and replacement of the STM32F767ZG microcontroller unit (MCU) on a development board equipped with the MCU Card socket. By introducing the new MCU Card standard, we have ensured the absolute compatibility between the development board and any of the supported MCUs, regardless of their pin number and compatibility. MCU Cards are equipped with two 168-pin mezzanine connectors, allowing them to support even MCUs with extremely high pin count
Haupteigenschaften
-
Embedded System TypeMCU
-
Family NameSTM32
Empfohlene Bauteile (16)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
SN65HVD230QDR | Texas Instruments | Controller Area Network - CAN Transceivers | CAN 1Mbps Standby 3.3V 8-Pin SOIC T/R | In den Warenkorb | |
|
|
SN65HVD230DR | Texas Instruments | Controller Area Network - CAN Transceivers | CAN 1Mbps Standby 3.3V 8-Pin SOIC T/R | In den Warenkorb | |
|
LAN8720AI-CP-ABC | Microchip Technology | PHY | PHY 1-CH 10Mbps/100Mbps 2.5V/3.3V 24-Pin QFN EP Tray | In den Warenkorb | |
|
|
SN65HVD230DR-906303111 | Texas Instruments | Controller Area Network - CAN Transceivers | CAN 1Mbps Standby 3.3V 8-Pin SOIC T/R | In den Warenkorb | |
|
|
LAN8720A-CP-TR-ABC | Microchip Technology | PHY | PHY 2-CH 10Mbps/100Mbps 1.8V/2.5V/3.3V 24-Pin SQFN EP T/R | In den Warenkorb | |
|
LAN8720A-CP-TR | Microchip Technology | PHY | PHY 1-CH 10Mbps/100Mbps 2.5V/3.3V 24-Pin VQFN EP T/R | In den Warenkorb | |
|
74CBTLV3257BQ,115 | Nexperia | Bus Switches | Multiplexer/Demultiplexer Bus Switch 1-Element CMOS 8-IN 16-Pin DHVQFN EP T/R | In den Warenkorb | |
|
|
SN65HVD230QDG4Q1 | Texas Instruments | Controller Area Network - CAN Transceivers | CAN 1Mbps Standby 3.3V 8-Pin SOIC Tube Automotive AEC-Q100 | In den Warenkorb | |
|
|
SN65HVD230QDRG4Q1 | Texas Instruments | Controller Area Network - CAN Transceivers | CAN 1Mbps Standby 3.3V Automotive AEC-Q100 8-Pin SOIC T/R | In den Warenkorb | |
|
|
SN65HVD230DRG4 | Texas Instruments | Controller Area Network - CAN Transceivers | CAN 1Mbps Standby 3.3V 8-Pin SOIC T/R | In den Warenkorb | |
|
|
LAN8720A-CP-ABC | Microchip Technology | PHY | PHY 1-CH 10Mbps/100Mbps 2.5V/3.3V 24-Pin QFN EP Tray | In den Warenkorb | |
|
|
LAN8720AI-CP-TR-ABC | Microchip Technology | PHY | PHY 2-CH 10Mbps/100Mbps 1.2V/1.8V/2.5V/3.3V 24-Pin QFN EP T/R | In den Warenkorb | |
