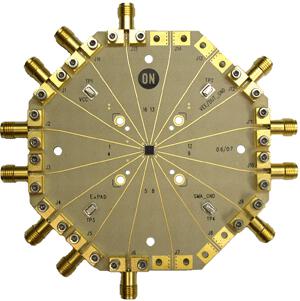

NB7L72MMNGEVB, Fully Differential 2x2 CrossPoint Switch Evaluation Board
Referenzdesign unter Verwendung des Teils NB7L72MMNG von onsemi
Bilder
1 / 2
Für Endprodukte
- Backplane Distributed Power
- Clock Management and Distribution
Beschreibung
- NB7L72MMNGEVB, Fully Differential 2x2 CrossPoint Switch Evaluation Board. The NB7L72M is a high bandwidth, low voltage, fully differential 2 x 2 CrossPoint switch with CML outputs. The NB7L72M design is optimized for low skew and minimal jitter as it produces two identical copies of Clock or Data operating up to 7 GHz or 10 Gb/s, respectively. As such, the NB7L72M is ideal for SONET, GigE, Fiber Channel, Backplane and other clock/data distribution applications. The differential IN/IN inputs incorporate internal 50 O termination resistors and will accept LVPECL, CML, or LVDS logic levels. The 16 mA differential CML outputs provide matching internal 50 O terminations and produce 400 mV output swings when externally terminated with a 50 O resistor to VCC. The NB7L72M is the 2.5 V/3.3 V version of the and NB7V72M and is offered in a low profile 3x3 mm 16-pin QFN package
Haupteigenschaften
-
Operating Frequency7000 MHz
Empfohlene Bauteile (1)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
NB7L72MMNG | onsemi | Digital Crosspoint Switches | Digital Crosspoint Single 2x2 10Gbps 16-Pin QFN EP Tube | In den Warenkorb | |
