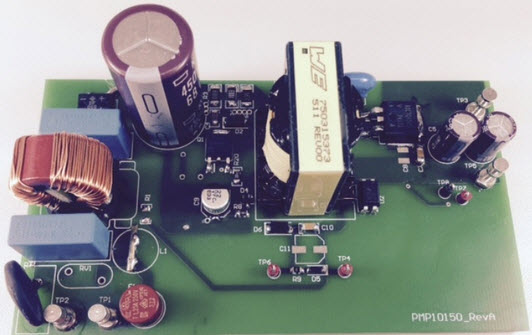

PMP10150.1, Universal AC Input, Dual 12V Output Quasi-Resonant Flyback Converter Reference Design
Referenzdesign unter Verwendung des Teils UCC28600D von Texas Instruments
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Power Supplies
Beschreibung

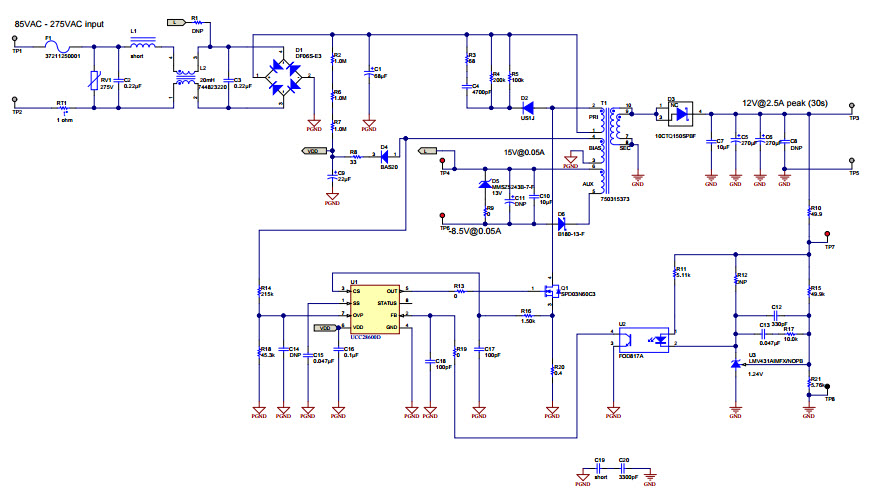

- PMP10150.1, Universal AC Input, Dual 12V Output Quasi-Resonant Flyback Converter Reference Design. The PMP10150 reference design uses the UCC28600 quasi-resonant flyback controller to generate a 12V and a -8.5V output from an universal AC input. An optocoupler is used to regulate the 12V output
Haupteigenschaften
-
Conversion TypeAC to DC
-
Input Voltage85 to 275 (AC) V
-
Output Voltage12 V
-
Output Current2.5 A
-
Output Power30 W
-
Efficiency84 %
-
TopologyFlyback- Quasi Resonant
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LMV431AIMFX/NOPB | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 30V 15mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
FOD817A | onsemi | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP Black Box | In den Warenkorb | |
|
|
LMV431AIMFX/NOPB | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 30V 15mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
UCC28600D | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback Tube 8-Pin SOIC | In den Warenkorb | |
