PMP10580, Power Solution for Terasic DE0-Nano (Cyclone IV) - Reference Design
Referenzdesign unter Verwendung des Teils LP38500SD-ADJ/NOPB von Texas Instruments
Bilder
1 / 6
Zugehörige Dokumente
Für Endprodukte
- Military and Avionics Imaging
Beschreibung

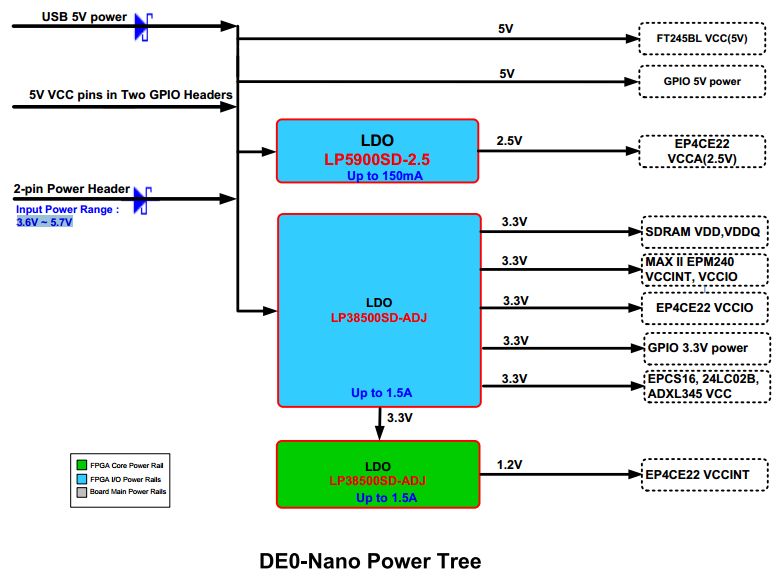

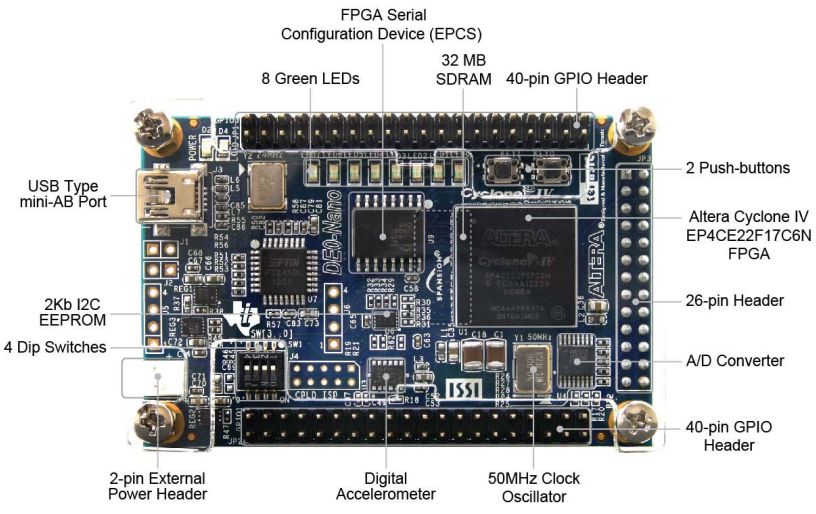

- PMP10580, Power Solution for Terasic DE0-Nano (Cyclone IV) - Reference Design. The PMP10580 reference design provides all the power supply rails necessary to power Altera's Cyclone IV FPGA. DE0-Nano was developed by Terasic and this board is available for purchase through Terasic's website
Haupteigenschaften
-
Conversion TypeDC to DC
Empfohlene Bauteile (7)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
ADC128S022CIMTX/NOPB | Texas Instruments | Analog to Digital Converters - ADCs | 8-Channel Single ADC SAR 200ksps 12-bit Serial 16-Pin TSSOP T/R | In den Warenkorb | |
|
LP5900SD-2.5/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 2.5V 0.15A 6-Pin WSON EP T/R | In den Warenkorb | |
|
|
ADC128S022CIMTX/NOPB | Texas Instruments | Analog to Digital Converters - ADCs | 8-Channel Single ADC SAR 200ksps 12-bit Serial 16-Pin TSSOP T/R | In den Warenkorb | |
|
|
LP5900SD-2.5/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 2.5V 0.15A 6-Pin WSON EP T/R | In den Warenkorb | |
|
SN74AUC17RGYR | Texas Instruments | Buffers and Line Drivers | Schmitt Trigger Buffer 6-CH Non-Inverting Push-Pull CMOS 14-Pin VQFN EP T/R | In den Warenkorb | |
|
LP38500SD-ADJ/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 0.6V to 5V 1.5A 8-Pin WSON EP T/R | In den Warenkorb | |
|
|
LP38500SD-ADJ/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 0.6V to 5V 1.5A 8-Pin WSON EP T/R | In den Warenkorb | |
