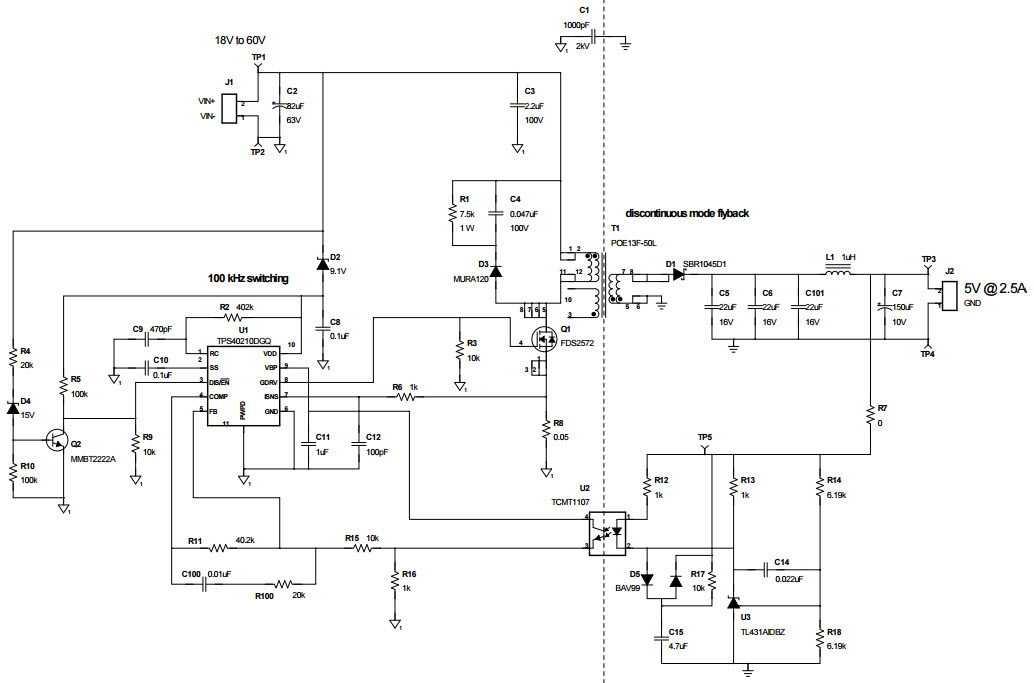

PMP11012, High Density Isolated 18-60 Vin, 5V, 2.5A Flyback Using Standard PoE Transformer Reference Design
Referenzdesign unter Verwendung des Teils TPS40210DGQ von Texas Instruments
Bilder
1 / 3
Für Endprodukte
- Power Supplies
Beschreibung

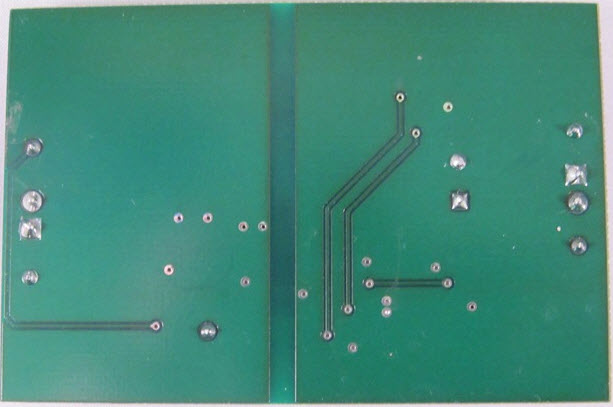

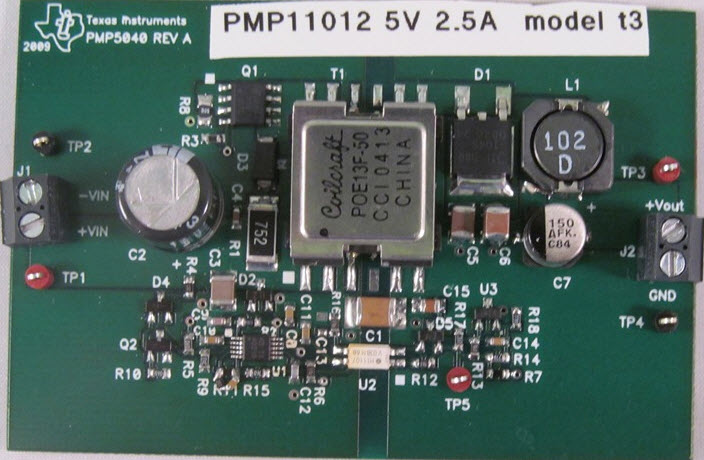

- PMP11012, High Density Isolated 18-60Vin 5V 2.5A Flyback Using Standard PoE Transformer Reference Design. PMP11012 is a fully isolated 5V at up to 2.5A delivered from a wide 18 - 60 VDC input range. The PMP11012 design is complete on 2 layer PCB, all parts on one side and with no forced air needed. Transformer is standard off the shelf 13 W POE type
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage18 to 60 V
-
Output Voltage5 V
-
Output Current2.5 A
-
Output Power12.5 W
-
TopologyFlyback- Non Sync
Empfohlene Bauteile (7)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TL431AIDBZTG4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TL431AIDBZR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
TCMT1107 | Vishay | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SSOP T/R | In den Warenkorb | |
|
|
TL431AIDBZT | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TL431AIDBZRG4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
TPS40210 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP Tube | In den Warenkorb | |
|
|
TPS40210DGQ | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP Tube | In den Warenkorb | |
