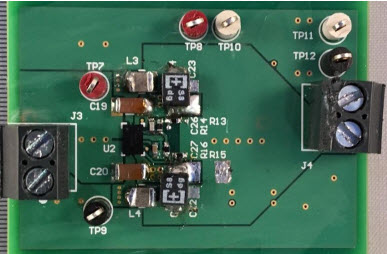

PMP11438.2, Three Different Buck Converter Circuits to Convert 12V to 1.2V at >6A Load Current Reference Design
Referenzdesign unter Verwendung des Teils TPS54A20RNJR von Texas Instruments
Bilder
1 / 8
Zugehörige Dokumente
Für Endprodukte
- Communications Equipment
- Enterprise Phones
- Ethernet Switch
Beschreibung
- PMP11438.2, Buck Converter Circuit to Convert 12V to 1.2V at >6A Load Current Reference Design. The PMP11438 is a vehicle used to compare three different power solutions for converting a 12V bus to 1.2V at 6 - 10A. The 1.2V output voltage is applicable to DDR4 memory applications. Each solution offers an advantage in either full load efficiency, light load efficiency, density, height, transient response, or some combination of these
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage10.8 to 13.2 V
-
Output Voltage1.2 V
-
Output Current6 A
-
Output Power7.2 W
-
Efficiency82 %
-
TopologyBuck- Multiphase|Buck- Synchronous
Empfohlene Bauteile (3)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS62184YZFR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 17V Synchronous Step Down Single-Out 0.9V to 3.5V 6A 24-Pin DSBGA T/R | In den Warenkorb | |
|
TPS53515RVER | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.5V to 18V Synchronous Step Down Single-Out 0.6V to 5.5V 12A 28-Pin VQFN EP T/R | In den Warenkorb | |
|
TPS54A20RNJR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 8V to 14V Synchronous Step Down Single-Out 0.5V to 2.8V 10A 20-Pin VQFN-HR EP T/R | In den Warenkorb | |
