PMP4670, Single Phase Demonstrator 350W
Referenzdesign unter Verwendung des Teils TPS40210DGQ von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Electrocardiograph Battery Powered
- Industrial Control
- LED Lighting
Beschreibung

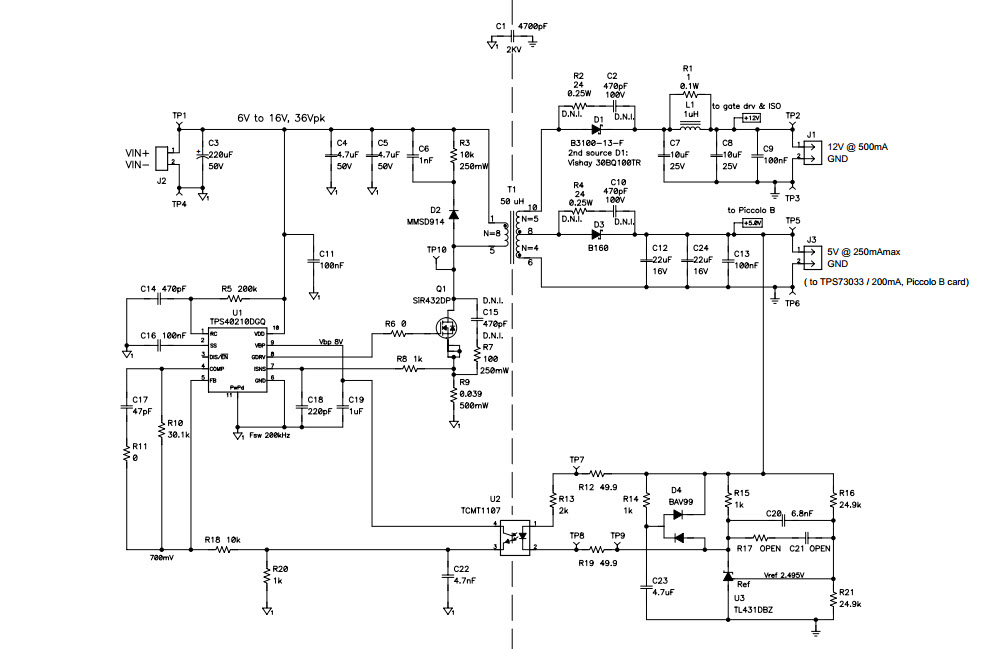

- PMP4670, isolated automotive flyback to supply DSP (piccolo B) EVM and provide 12V gate drive
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage6 to 16 V
-
Output Voltage5|12 V
-
Output Current0.25@5V|0.5@12V A
-
Output Power350 W
-
TopologyBoost
