PMP4856, TPS54418 Optimized for Small Size
Referenzdesign unter Verwendung des Teils TPS54318RTE von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Communications and Telecom
- FPGA Solutions
- Low-Voltage Motor
- Optical Networking
- WiMAX/Wireless Broadband
Beschreibung

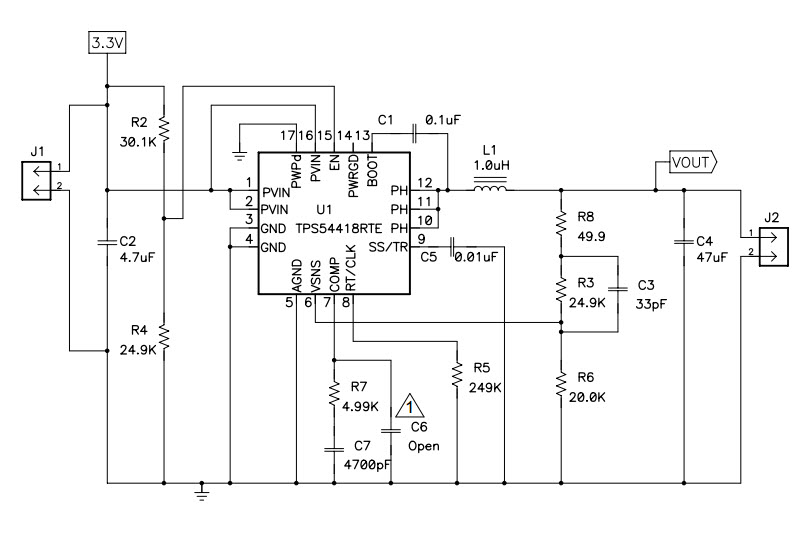

- PMP4856, uses the TPS54418 DC/DC converter and features a double-sided, small form factor layout requiring only 65 square millimeters of board space. The design is optimized for a 3.3 V input and 1.8 V output, and contains all necessary external components, including a 47F ceramic output capacitor, a 4.7F ceramic input capacitor, and a 1H IHLP-1616 inductor. The TPS54418 is a 2.95 to 6 V, 4 A synchronous buck DC/DC converter with integrated 30 milliohm MOSFETs in a small 3mm x 3mm 16 pin QFN package
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage3.3 V
-
Output Voltage1.8 V
-
Efficiency95 %
-
TopologyBuck
