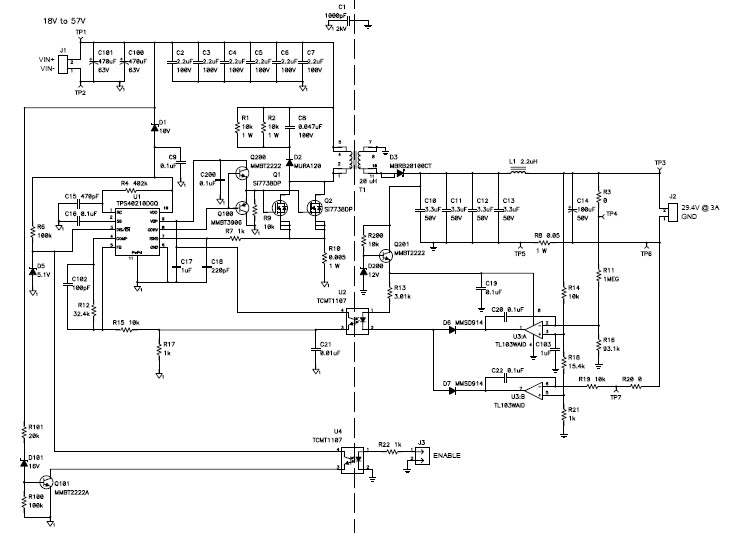

PMP4963, 18Vdc-57Vdc Input Isolated Battery Charger 29V @ 3A
Referenzdesign unter Verwendung des Teils TPS40210DGQ von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Industrial
Beschreibung
- PMP4963, 18Vdc-57Vdc Input Isolated Battery Charger 29V @ 3A. PMP4963 reference design uses the TPS40210 PWM controller in a flyback configuration to supply 3A of charge current at over 90% efficiency. The output voltage is limited by the control circuitry to 29.4V
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage18 to 57 V
-
Output Voltage29 V
-
Output Current3 A
-
Output Power87 W
-
TopologyFlyback- Non Sync
