PMP5177, Active Clamp forward 24V@1.7A for PoE Applications
Referenzdesign unter Verwendung des Teils TPS40200D von Texas Instruments
Bilder
1 / 3
Zugehörige Dokumente
- INA194 CAD symbol
- LM4040A25 PSPICE
- TPS40200 PSPICE
- TLV3701 PSPICE
- LM358A PSPICE
- LM358A CAD symbol
- TLV3701 CAD symbol
- TLV3701 CAD symbol

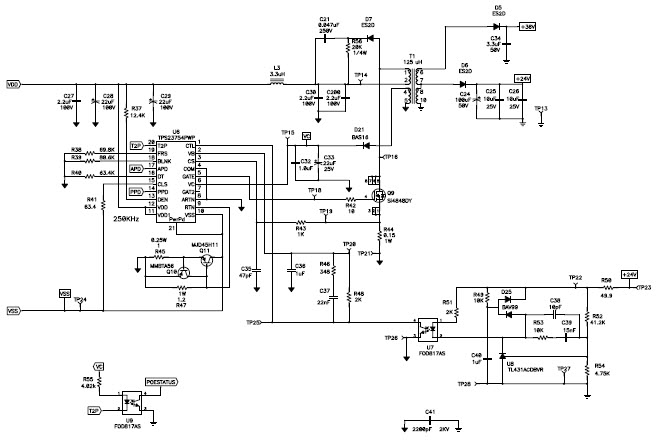

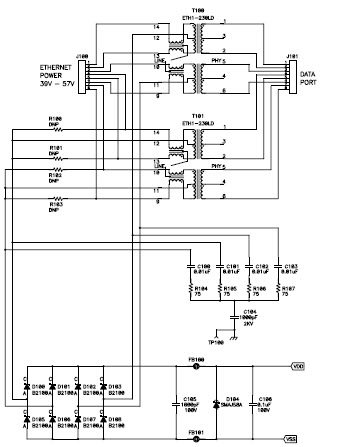

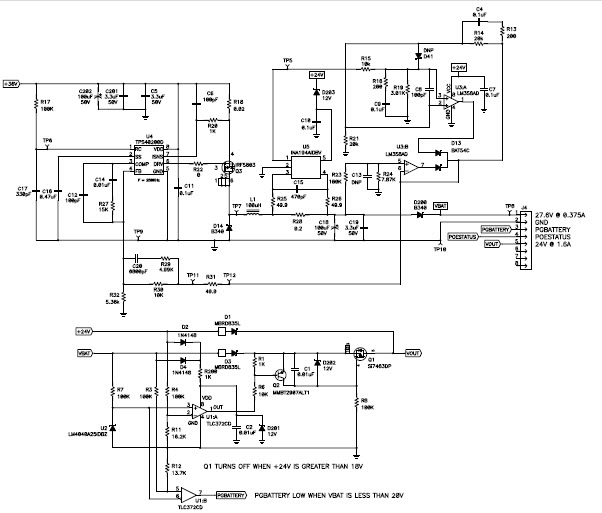

- Schematic
- LM358A CAD symbol
- BOM File
- INA194 TINA SPICE
- TPS23754 CAD symbol
- PMP5177 Test Result
- TL431A CAD symbol
- TL431A TINA SPICE
- INA194 PSPICE
- TPS23754-1 CAD symbol
- LM4040A25 CAD symbol
- TPS40200 TINA SPICE
- TL431A PSPICE
- TLV3701 TINA SPICE
Für Endprodukte
- Communications and Telecom
- Power Over Ethernet
Beschreibung
- PMP5177, Active Clamp forward 24V@1.7A for PoE Applications. Active Clamp forward 24V@1.7A for PoE Applications
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage33 to 57 V
-
Output Voltage24 V
-
Output Current1.7 A
-
Output Power40.8 W
-
TopologyForward- Active Clamp
