PMP6588.2, Universal AC Input Audio Supply 24V/30Wavg (70Wpk) (5V @ 1.5A)
Referenzdesign unter Verwendung des Teils UCC28610D von Texas Instruments
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Consumer Electronics
Beschreibung

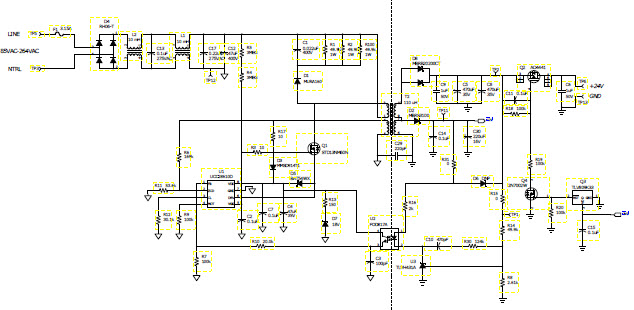

- PMP6588.2, Universal AC Input Audio Supply 24V/30Wavg (70Wpk) (5V @ 1.5A). Reference design provides a compact power solution for 70W (peak) audio systems. This supply accepts a universal AC input, and uses a UCC28610 quasi-resonant flyback controller to generate an isolated 24V. Auxiliary 5V/1.5A and 3.3V/0.1A outputs are also provided. This design is capable of providing power to sustained loads of 30W and peak power loads of 70W with efficiencies up to 85%
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage8 to 15 V
-
Output Voltage5 V
-
Output Current1.5 A
-
Output Power7.5 W
-
TopologyBuck- Synchronous
