PMP8650.2, Universal Input, 3.8W Quasi-Resonant Flyback using LM5023
Referenzdesign unter Verwendung des Teils LM5023MM von Texas Instruments

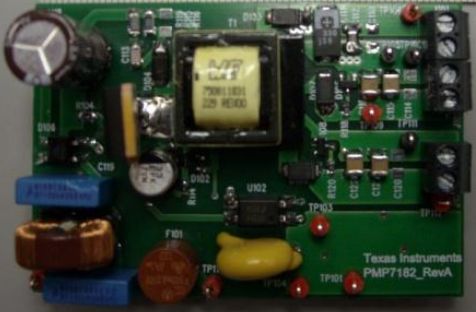

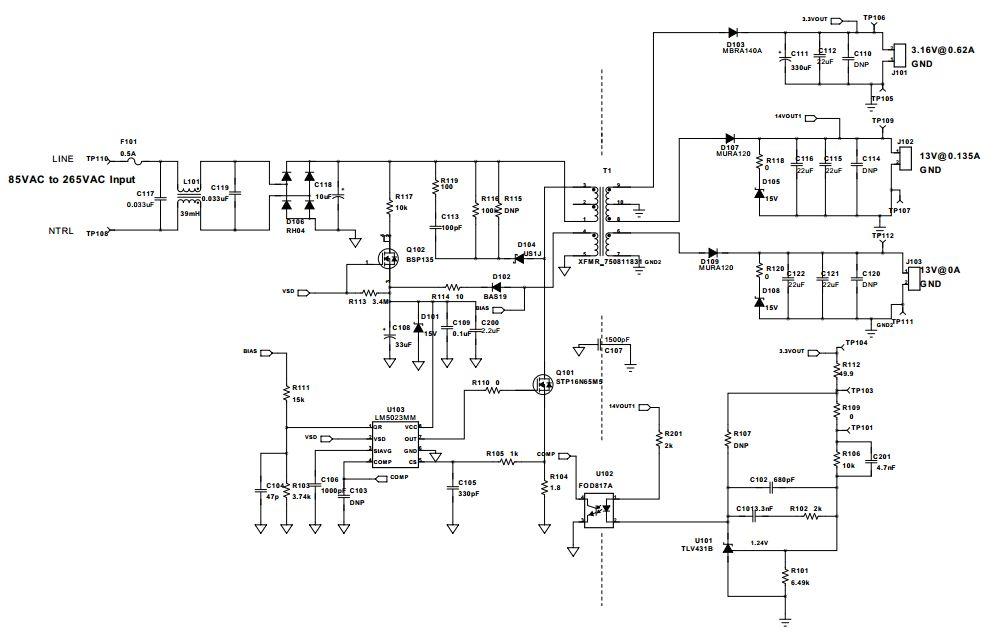

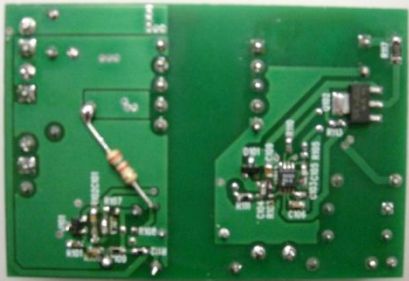

Bilder
1 / 3
Zugehörige Dokumente
Für Endprodukte
- Industrial
Beschreibung
- PMP8650.2, This reference design uses the LM5023 quasi-resonant flyback controller to generate isolated 3.16V and 13V outputs from an universal input. The regulated 3.16V output provides up to 620mA of output current, while the unregulated 13V output is capable of providing up to 135mA
Haupteigenschaften
-
Conversion TypeAC to DC
-
Input Voltage85 to 265 (AC) V
-
Output Voltage13 V
-
Output Current0.14 A
-
Output Power1.755 W
-
TopologyFlyback- Quasi Resonant
