PMP9760, Low Power Simple and Efficient Voltage Inverter for Optical Networking Modules Reference Design
Referenzdesign unter Verwendung des Teils TPS62125DSG von Texas Instruments
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Optical Networking
Beschreibung

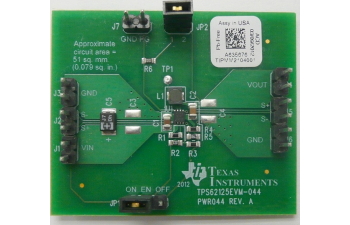

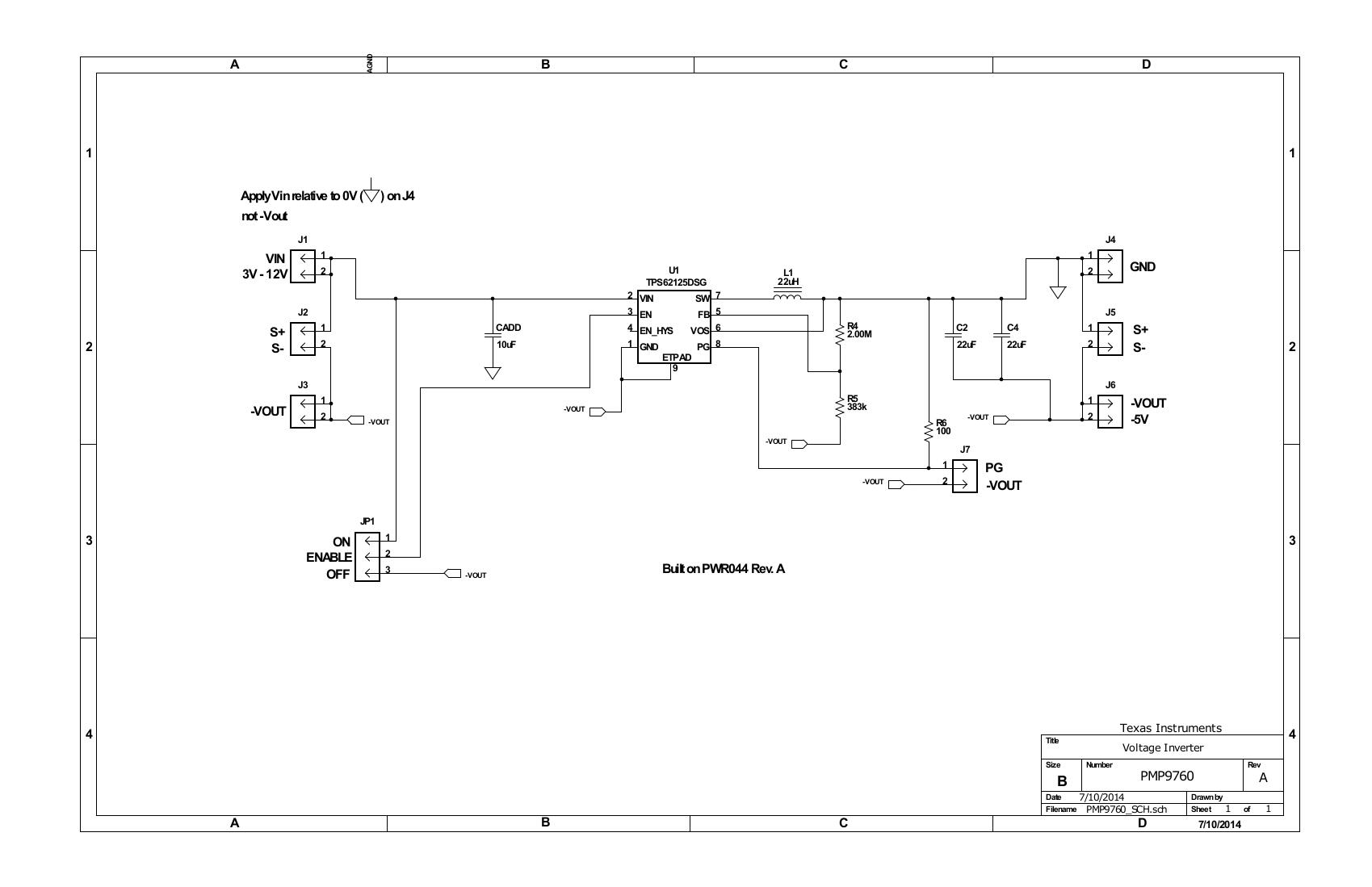

- PMP9760, Low Power Simple and Efficient Voltage Inverter for Optical Networking Modules Reference Design. In this reference design, the TPS62125 provides a simple and efficient voltage inverting circuit to be used for low power negative voltage rails, such as found in optical modules. This configuration has been tested with a full test report and operation explanation
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage3 to 12 V
-
Output Current0.12 A
-
Efficiency85 %
-
TopologyBuck
Empfohlene Bauteile (3)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS62125DSGT | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 17V Synchronous Step Down Single-Out 1.2V to 10V 0.3A 8-Pin WSON EP T/R | In den Warenkorb | |
|
|
TPS62125DSGR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 17V Synchronous Step Down Single-Out 1.2V to 10V 0.3A 8-Pin WSON EP T/R | In den Warenkorb | |
|
|
TPS62125-W | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 17V Synchronous Step Down Single-Out 1.2V to 10V 0.3A 8-Pin WSON EP T/R | In den Warenkorb | |
