SERDES05-40USB, Evaluation Kit for DS99R105 and DS99R106 FPD-Link II Serializer and Deserializer Chipset

Beschreibung

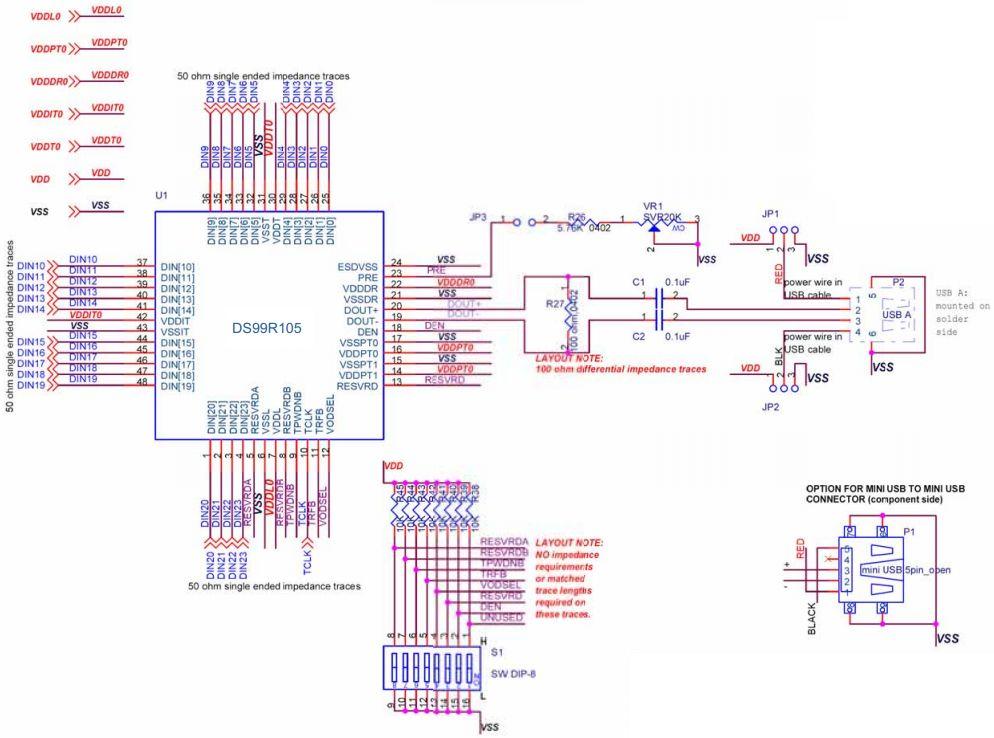

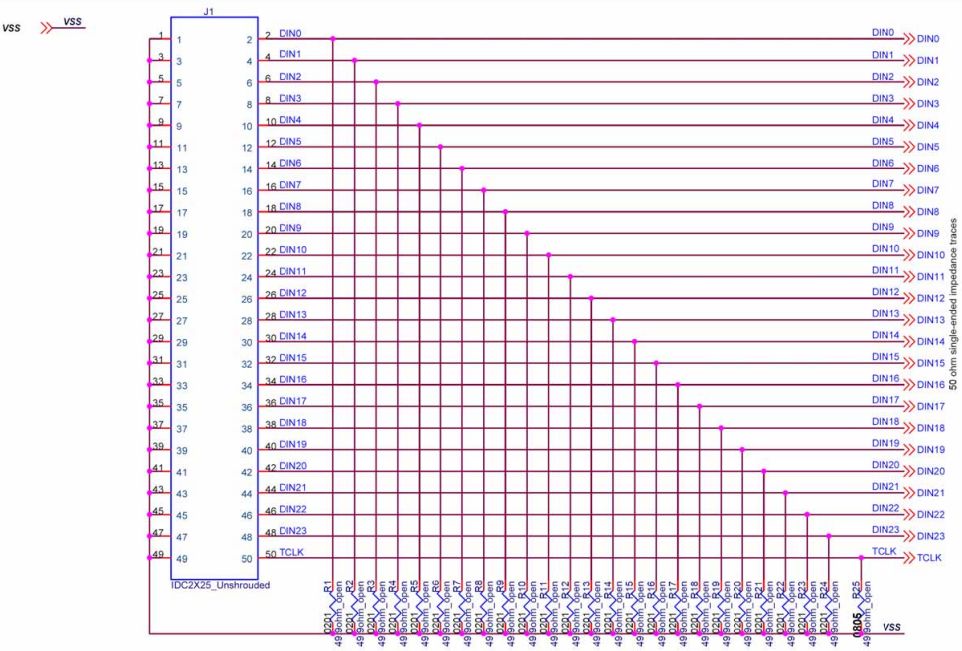

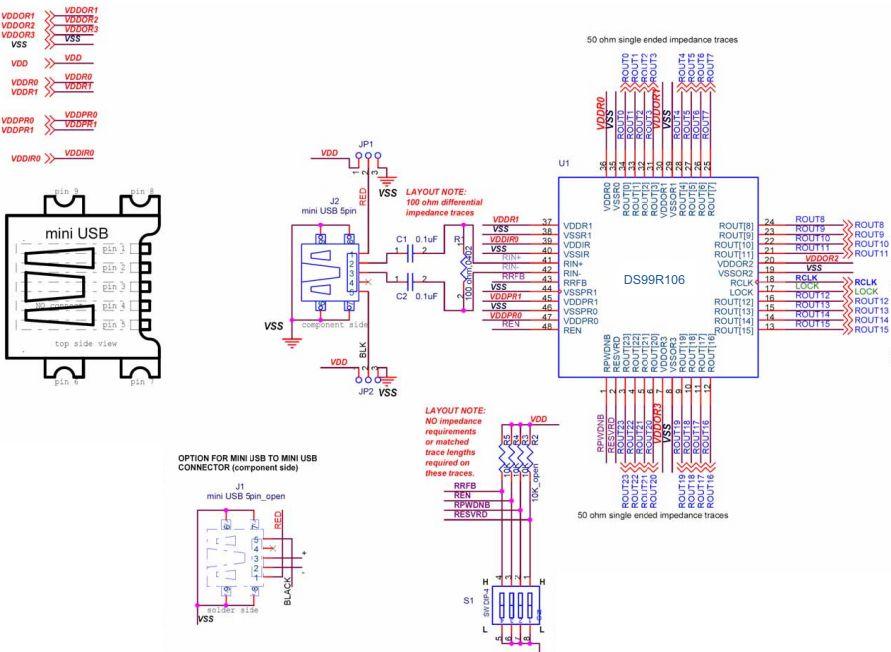

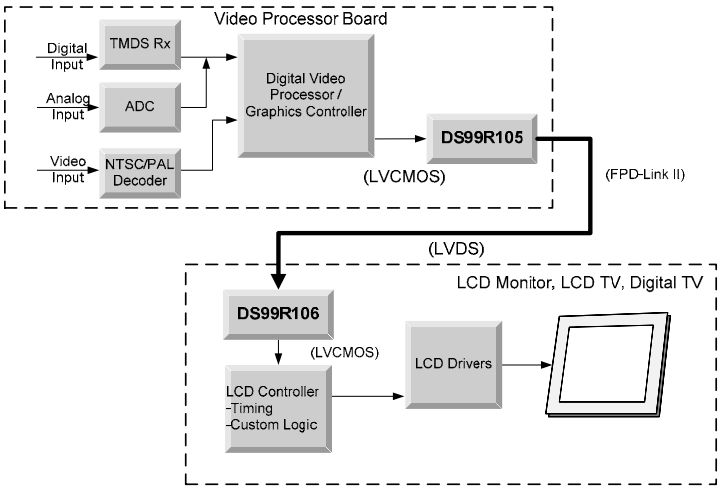

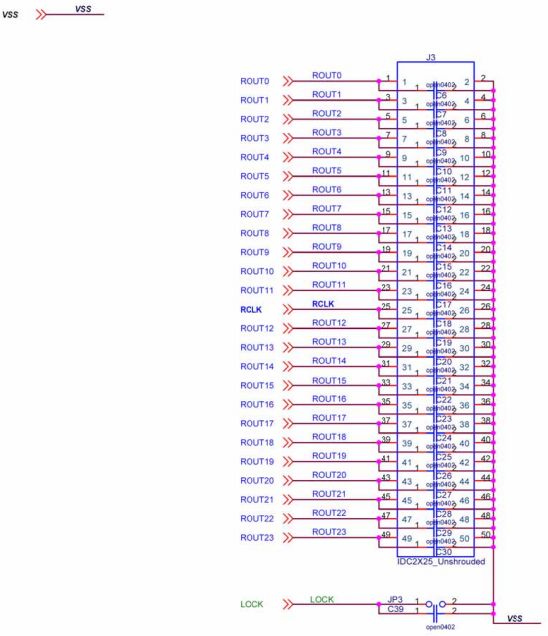

• SERDES05-40USB, is an evaluation kit designed to demonstrate performance and capabilities of the DS99R105 and DS99R106 FPD-Link II Serializer/Deserializer Chipset. The DS99R105 Serializer board accepts LVCMOS input signals and provides single serialized FPD-Link II LVDS data pair as an output. The DS99R106 Deserializer board accepts the FPD-Link II LVDS serialized data stream and converts the data back into parallel LVCMOS signals and clock. USB cable is provided as a generic medium for the high speed data link. Jumpers and switches on the boards can be configured for evaluation of chipset features
