SLVU159, 5.2V DC to DC Single Output Power Supply for Wireless LAN
Referenzdesign unter Verwendung des Teils TPS23750PWP von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- IP Phone
- PoE Security Camera
- Power Over Ethernet
- Wireless LAN
Beschreibung

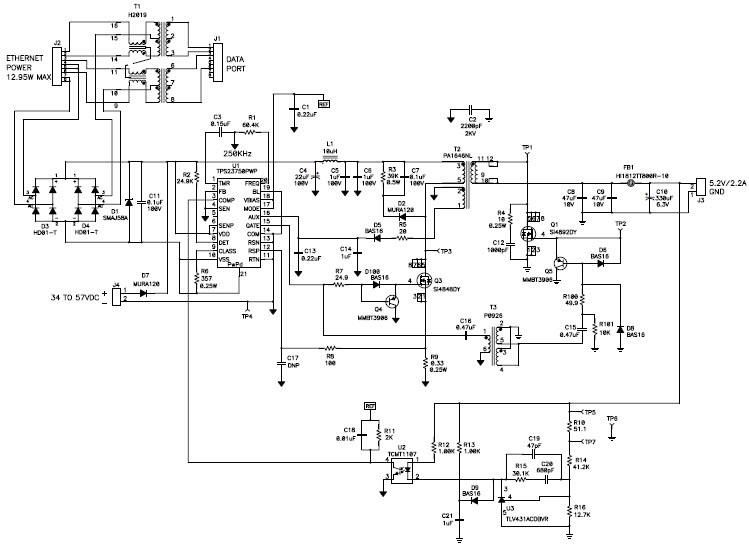

- SLVU159, 5.2V DC to DC Single Output Power Supply for Wireless LAN. PMP1564 is a high efficiency, isolated, synchronous flyback Power-over-Ethernet PD power supply that eases implementation of PoE in devices such as IP phones, WLAN APs and security cameras. The 48V PoE input is converted to 5V at 2.2A. The design is optimized for 90% efficiency in the smallest board area possible
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage34 to 57 V
-
Output Voltage5.2 V
-
Output Current2.2 A
-
Efficiency90 %
-
TopologyFlyback
