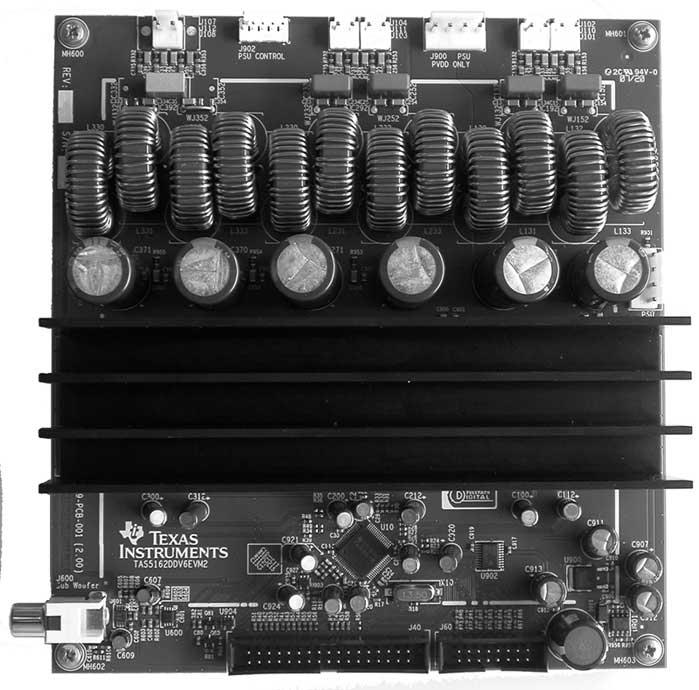

TAS5162DDV6EVM2, Digital Amplifier Power Output Stage using TAS5518 Digital Audio PWM Processor
Referenzdesign unter Verwendung des Teils TAS5162DDV von Texas Instruments
Bilder
1 / 7
Zugehörige Dokumente
Für Endprodukte
- AV Receiver
- DVD Player
- Home Theater
- Portable Audio
Beschreibung
- TAS5162DDV6EVM2 PurePath Digital customer evaluation module demonstrates the integrated circuits TAS5162DDV and TAS5518PAG from . The TAS5162DDV is a high-performance, integrated stereo Digital Amplifier Power Stage designed to drive 6- speakers at up to 210W per channel
Haupteigenschaften
-
Number of Channels1|4
-
Output Power310 W
-
Amplifier TypeClass-AB
Empfohlene Bauteile (26)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TAS5518PAGR | Texas Instruments | Audio Processors | 8 Channels Digital Audio PWM Processor | In den Warenkorb | |
|
|
TAS5518PAG | Texas Instruments | Audio Processors | Digital Audio PWM Processor | In den Warenkorb | |
|
TLV272CDGKR | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Dual Low Power Amplifier R-R O/P ±8V/16V 8-Pin VSSOP T/R | In den Warenkorb | |
|
SN74LVC2G126DCT3 | Texas Instruments | Buffers and Line Drivers | Buffer/Line Driver 2-CH Non-Inverting 3-ST CMOS 8-Pin SSOP | In den Warenkorb | |
|
TPS76733QPWPREP | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 1A 20-Pin HTSSOP EP T/R | In den Warenkorb | |
|
|
TPS76733QPWPR | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 1A 20-Pin HTSSOP EP T/R | In den Warenkorb | |
|
TPS5430DDARG4 | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 5.5V to 36V Step Down Single-Out 1.22V to 31V 3A 8-Pin HSOIC EP T/R | In den Warenkorb | |
|
|
TPS5430DDA-P | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 5.5V to 36V Step Down Single-Out 1.22V to 31V 3A 8-Pin HSOIC EP Tube | In den Warenkorb | |
|
|
TPS76733QPWPG4 | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 1A 20-Pin HTSSOP EP Tube | In den Warenkorb | |
|
|
TLV272CDGKRG4 | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Dual Low Power Amplifier R-R O/P ±8V/16V 8-Pin VSSOP T/R | In den Warenkorb | |
|
|
TLV272CDGK | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Dual Low Power Amplifier R-R O/P ±8V/16V 8-Pin VSSOP Tube | In den Warenkorb | |
|
|
TPS5430DDAR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 5.5V to 36V Step Down Single-Out 1.22V to 31V 3A 8-Pin HSOIC EP T/R | In den Warenkorb | |
