Temperature Sensor for Thermocouple
Referenzdesign unter Verwendung des Teils MAX6627 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Cellular Phone
- Home Appliances
- Thermocouple
Beschreibung

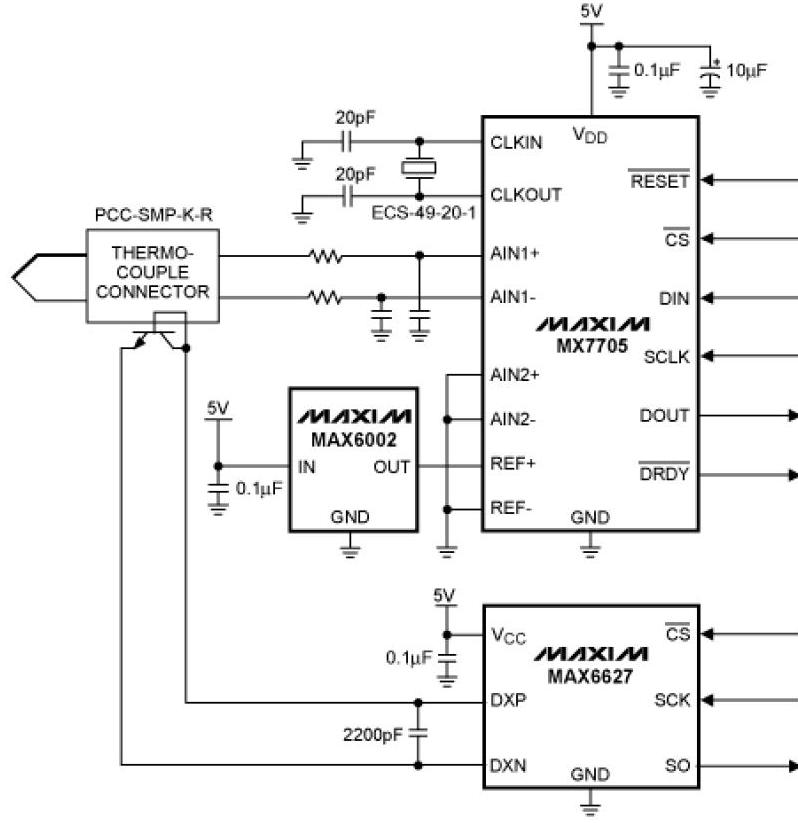

- Remote-Diode Temperature-Sensor IC Need not be Near the Cold Junction, Since it Uses an External Diode to Sense the Temperature. This Diode can be Mounted Directly on the Optional Retainer Clip of the Thermocouple Connector. The MAX6002 Provides a Stable 2.5V Reference Voltage for the ADC
Empfohlene Bauteile (17)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
MAX6002EUR+T | Analog Devices | Voltage References | V-Ref Precision 2.5V 0.4mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
MAX6002EUR+ | Analog Devices | Voltage References | V-Ref Precision 2.5V 0.4mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
MX7705EUE+ | Analog Devices | Analog to Digital Converters - ADCs | 2-Channel Single ADC Delta-Sigma 500sps 16-bit Serial 16-Pin TSSOP Tube | In den Warenkorb | |
|
|
MX7705EUE+T | Analog Devices | Analog to Digital Converters - ADCs | 2-Channel Single ADC Delta-Sigma 500sps 16-bit Serial 16-Pin TSSOP T/R | In den Warenkorb | |
|
MX7705EWE+ | Analog Devices | Analog to Digital Converters - ADCs | 2-Channel Single ADC Delta-Sigma 500sps 16-bit Serial 16-Pin SOIC W Tube | In den Warenkorb | |
|
|
MAX6002EUR+T | Analog Devices | Voltage References | V-Ref Precision 2.5V 0.4mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
MAX6002EUR+ | Analog Devices | Voltage References | V-Ref Precision 2.5V 0.4mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
MX7705EUE+ | Analog Devices | Analog to Digital Converters - ADCs | 2-Channel Single ADC Delta-Sigma 500sps 16-bit Serial 16-Pin TSSOP Tube | In den Warenkorb | |
|
|
MX7705EUE+T | Analog Devices | Analog to Digital Converters - ADCs | 2-Channel Single ADC Delta-Sigma 500sps 16-bit Serial 16-Pin TSSOP T/R | In den Warenkorb | |
|
MAX6627MTA+T | Analog Devices | Temperature and Humidity Sensors | Temp Sensor Digital Serial (3-Wire, SPI) 8-Pin TDFN EP T/R | In den Warenkorb | |
|
|
MAX6627MTA+ | Analog Devices | Temperature and Humidity Sensors | Temp Sensor Digital Serial (3-Wire, SPI) 8-Pin TDFN EP T/R | In den Warenkorb | |
|
MAX6627MKA+T | Analog Devices | Temperature and Humidity Sensors | Temp Sensor Digital Serial (3-Wire, SPI) 8-Pin SOT-23 T/R | In den Warenkorb | |
