TIDA-00012, High Efficiency Isolated CAN/PROFIBUS Interface Reference Design
Referenzdesign unter Verwendung des Teils TPS55010RTE von Texas Instruments
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Access Control
- Consumer Electronics Control
- Industrial
- Portable Consumer Electronics
Beschreibung

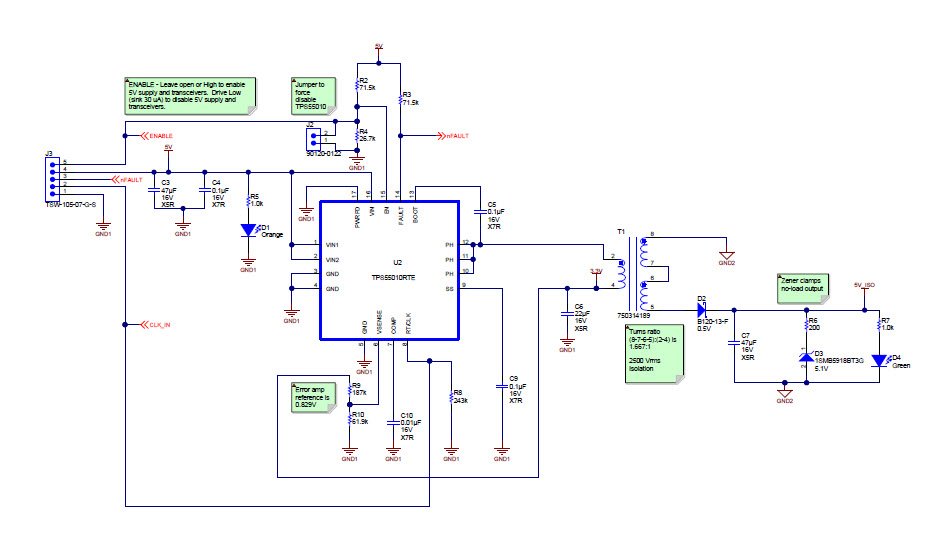

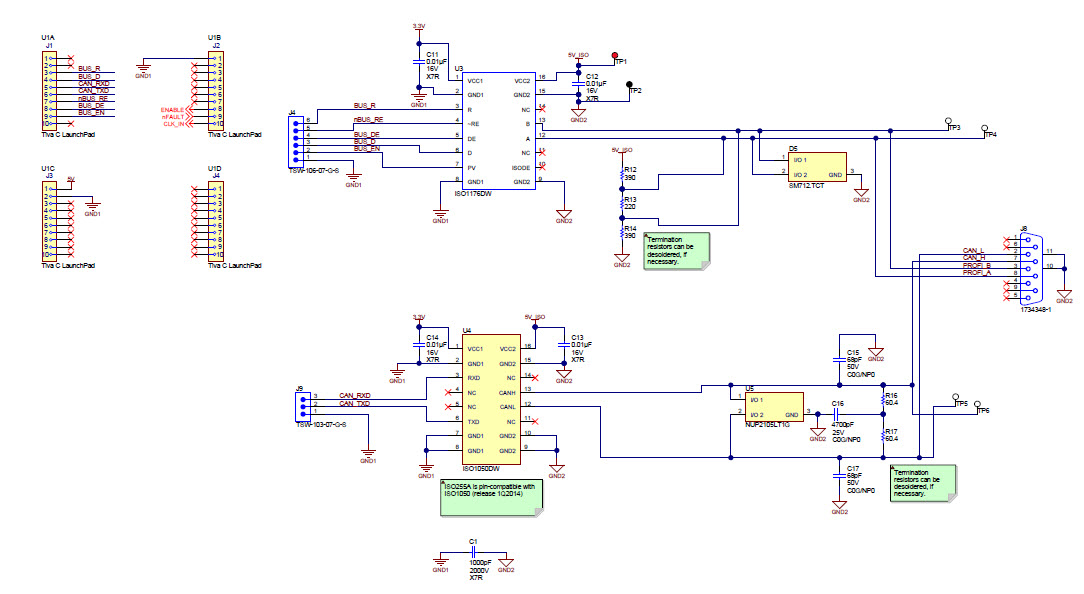

- TIDA-00012, High Efficiency Isolated CAN/PROFIBUS Interface Reference Design. High Efficiency Isolated CAN/PROFIBUS Interface Solution Design is intended for use in industrial systems that require isolated power for CAN and/or PROFIBUS transceivers. This Design highlights the ability to completely shut off both the power converter and data transceivers with just one GPIO signal from a microcontroller (when dropping into low power modes, for example). This isolated interface solution delivers accurately regulated rails for both primary and secondary power to TIs PROFIBUS and CAN transceivers without costly Optocoupler feedback circuits making this the simplest, most efficient and flexible isolated interface solution for industrial automation on the market today
Haupteigenschaften
-
Conversion TypeDC to DC
-
TopologyBuck Boost
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
ISO1176DWR | Texas Instruments | Bus Line Transceivers | Single Transmitter/Receiver RS-485 16-Pin SOIC T/R | In den Warenkorb | |
|
|
ISO1050DWR | Texas Instruments | Controller Area Network - CAN Transceivers | CAN 1Mbps 3.3V/5V 16-Pin SOIC T/R | In den Warenkorb | |
|
TPS55010RTET | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.95V to 6V Non-Inv/Inv/Step Up/Step Down Dual-Out 5V to 20V/-5V to -20V 0.1A/.01A 16-Pin WQFN EP T/R | In den Warenkorb | |
|
|
TPS55010RTER | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.95V to 6V Non-Inv/Inv/Step Up/Step Down Dual-Out 5V to 20V/-5V to -20V 0.1A/.01A 16-Pin WQFN EP T/R | In den Warenkorb | |
