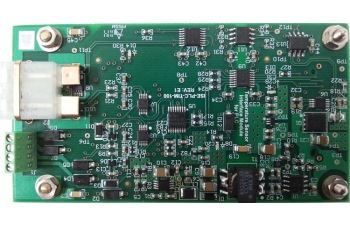

TIDA-00018, Temperature Sensor Interface Module for Programmable Logic Controllers (PLC)
Referenzdesign unter Verwendung des Teils TMP275AIDGK von Texas Instruments
Bilder
1 / 8
Beschreibung
- TIDA-00018, Temperature Sensor Interface Module for Programmable Logic Controllers (PLC). The TIDA-00018 reference design enables faster development of high precision temperature measurement solutions using 24-Bit delta-sigma ADC and most widely used temperature sensors like thermocouple and RTD. The design guide will address the sensor signal conditioning, thermocouple cold junction compensation, ratiometric measurement technique for RTD, recommended software flow, sensor linearization, sensor diagnostics, transient protection, PCB layout and other practical design considerations for achieving high precision robust design for temperature measurement in industrial applications
Empfohlene Bauteile (23)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
AT24C02C-SSHM-T-989 | Microchip Technology | EEPROM | 2K 5.0V Serial EEPROM | In den Warenkorb | |
|
|
AT24C02C-SSHM-T-899 | Microchip Technology | EEPROM | 2K 5.0V Serial EEPROM | In den Warenkorb | |
|
TPS7A4901DGNR_SAMPLE | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.194V to 33V 0.15A 8-Pin HVSSOP EP T/R | In den Warenkorb | |
|
TPS71533DCKR | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.05A 5-Pin SC-70 T/R | In den Warenkorb | |
|
ADS1220IPWR | Texas Instruments | Analog to Digital Converters - ADCs | 4-Channel Single ADC Delta-Sigma 2ksps 24-bit Serial 16-Pin TSSOP T/R | In den Warenkorb | |
|
LM5069MM-2/NOPB | Texas Instruments | Hot Swap Controllers | Hot Swap Controller 1-CH 80V N-Channel Positive High Voltage 10-Pin VSSOP T/R | In den Warenkorb | |
|
ISO1541DR | Texas Instruments | Digital Isolators | Digital Isolator Open Drain 2-CH 1Mbps 8-Pin SOIC T/R | In den Warenkorb | |
|
|
TPS7A4901DGNR | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.194V to 33V 0.15A 8-Pin HVSSOP EP T/R | In den Warenkorb | |
|
ISO7141CCDBQ | Texas Instruments | Digital Isolators | Digital Isolator Logic 4-CH 50Mbps 16-Pin SSOP Tube | In den Warenkorb | |
|
|
AT24C02C-SSHM-T-441 | Microchip Technology | EEPROM | 2K 5.0V Serial EEPROM | In den Warenkorb | |
|
|
AT24C02C-SSHM-T | Microchip Technology | EEPROM | EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V Automotive 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
AT24C02C-SSHM-B | Microchip Technology | EEPROM | EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V Automotive AEC-Q100 8-Pin SOIC N Tube | In den Warenkorb | |
