TIDA-00072, Wideband Digital to RF Transmit Solution
Referenzdesign unter Verwendung des Teils DAC3484IRKD von Texas Instruments
Bilder
1 / 10
Zugehörige Dokumente
Für Endprodukte
- Femto Base Station
- Point-to-Point Microwave Backhaul
- Software Defined Radio
- Wireless Base Station
- Wireless LAN Card
- Wireless Repeater
Beschreibung

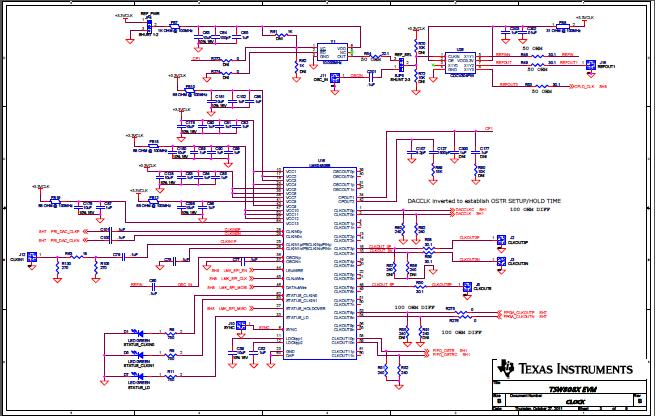

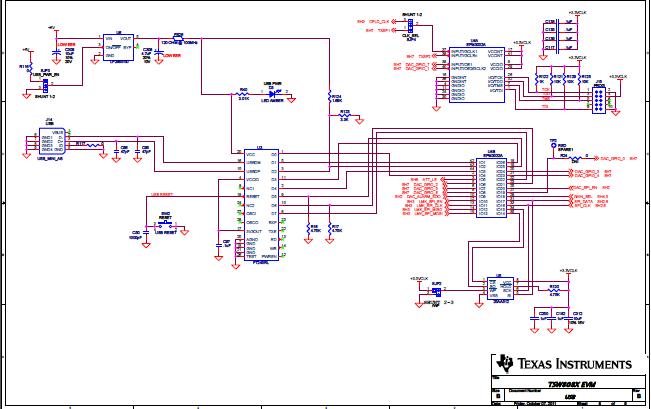

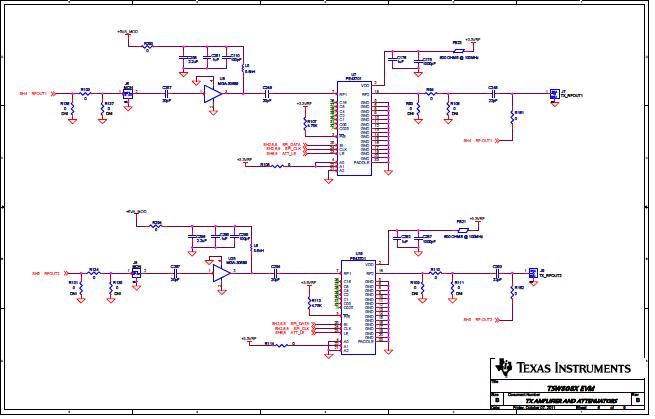

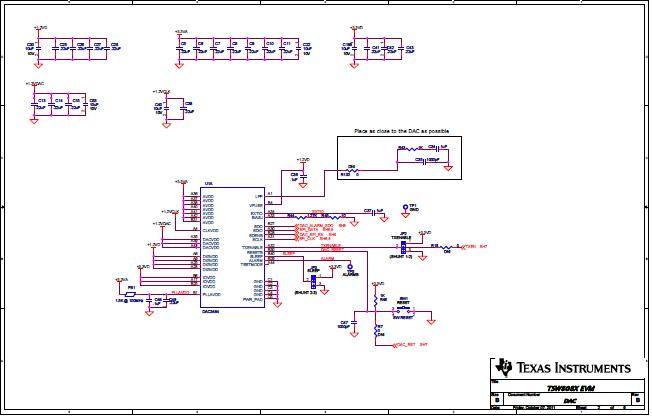

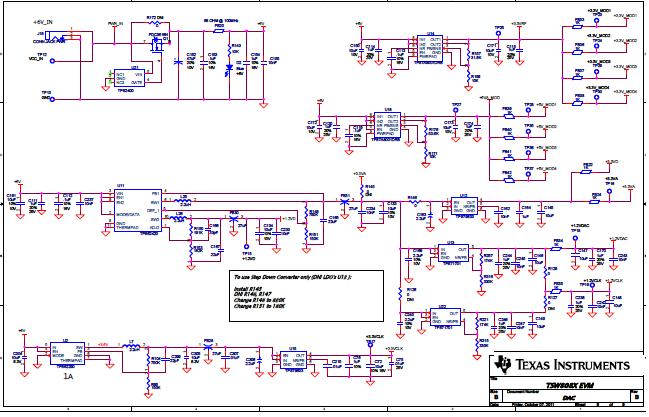

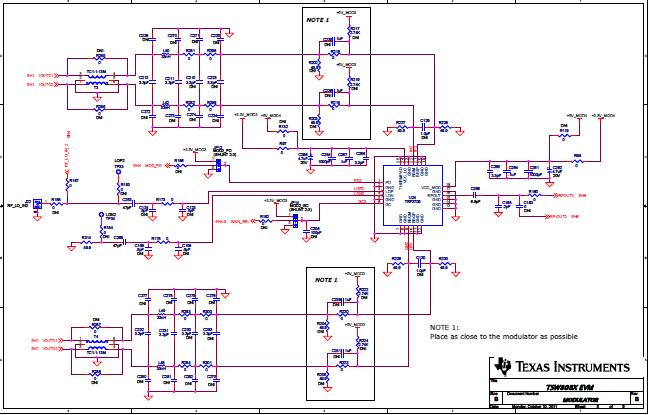

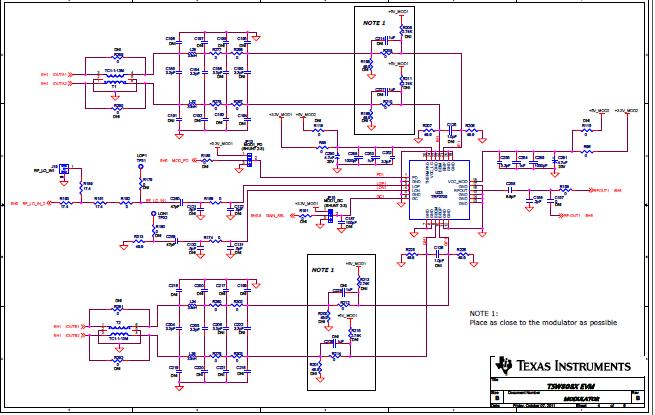

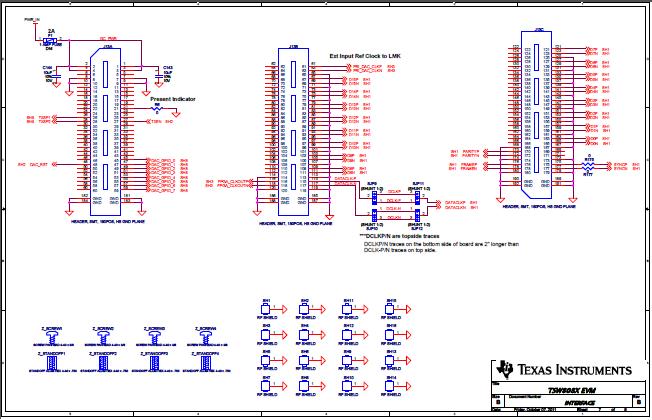

- TIDA-00072, Wideband Digital to RF Transmit Solution. The TSW308x is an example design of a wideband digital to RF transmit solution capable of generating 600 MHz of contiguous RF spectrum. The system provides a reference on how to use the DAC34x8x, TRF3705 IQ modulator and LMK0480x to achieve this. This reference EVM coupled with a pattern generator such as the TSW1400EVM can be used to arbitrarily generate narrow band wideband signals at RF. Examples of configurations to generate standards compliant WCDMA test signals are provided
Haupteigenschaften
-
DAC Resolution16 Bit
-
Number of Channels4CH
Empfohlene Bauteile (27)
