TIDA-00266, Haptic Feedback with Bluetooth Low Energy and iOS App Reference Design
Referenzdesign unter Verwendung des Teils DRV2605YZF von Texas Instruments
Bilder
1 / 4
Für Endprodukte
- Health System
- Industrial Automation HMI
- Portable Medical Devices
- Watches
Beschreibung

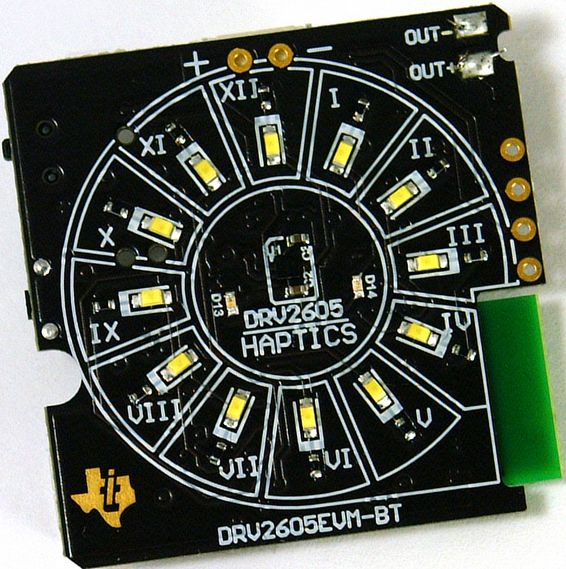

- TIDA-00266, Haptic Feedback with Bluetooth Low Energy and iOS App Reference Design. This reference design features the DRV2605 Eccentric Rotating Mass (ERM) and Linear Resonant Actuator (LRA) Haptic Driver with integrated pre-licensed effect library from Immersion. The board includes an LRA, alkaline battery pack and can be programmed and controlled with the included iOS App via the SimpleLink Bluetooth Low Energy (BLE) CC2541 wireless MCU. The board can be used for prototyping and integrating haptics into any type of application including watches, fitness trackers, wearables, portable medical equipment, HMI or anything that needs touch feedback
Empfohlene Bauteile (9)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
PTS840 PM SMTR LFS | C&K | Switch Tactile | Switch Tactile OFF Mom SPST Button Front PIP 0.05A 12VDC 100000Cycles 1.57N SMD T/R | In den Warenkorb | |
|
TPS63051YFFR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.5V to 5.5V Inverting/Synchronous Step Up/Synchronous Step Down Single-Out 3.3V 0.5A 12-Pin DSBGA T/R | In den Warenkorb | |
|
|
TPS63051YFFT-S | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.5V to 5.5V Inverting/Synchronous Step Up/Synchronous Step Down Single-Out 3.3V 0.5A 12-Pin DSBGA T/R | In den Warenkorb | |
|
|
TPS63051YFFT | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.5V to 5.5V Inverting/Synchronous Step Up/Synchronous Step Down Single-Out 3.3V 0.5A 12-Pin DSBGA T/R | In den Warenkorb | |
|
|
PTS840 PM SMTR LFS | C&K | Switch Tactile | Switch Tactile OFF Mom SPST Button Front PIP 0.05A 12VDC 100000Cycles 1.57N SMD T/R | In den Warenkorb | |
|
|
TPS63051YFFR-S | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.5V to 5.5V Inverting/Synchronous Step Up/Synchronous Step Down Single-Out 3.3V 0.5A 12-Pin DSBGA T/R | In den Warenkorb | |
|
BQ24232RGTR | Texas Instruments | Battery Management ICs | Linear Battery Charger Li-Ion/Li-Pol 500mA 4.2V 16-Pin VQFN EP T/R | In den Warenkorb | |
|
DRV2605YZFT | Texas Instruments | Motor Controller and Driver ICs | Dual Half Bridge Haptic Driver 9-Pin DSBGA T/R | In den Warenkorb | |
|
|
DRV2605YZFR | Texas Instruments | Motor Controller and Driver ICs | Dual Half Bridge Haptic Driver 9-Pin DSBGA T/R | In den Warenkorb | |
