TIDA-00724, Automotive Emergency Call (eCall) Audio Subsystem Reference Design
Referenzdesign unter Verwendung des Teils TAS5411QPWPRQ1 von Texas Instruments
Bilder
1 / 5
Für Endprodukte
- Automotive Electronics
- Gateway Switch
- Telematics
Beschreibung

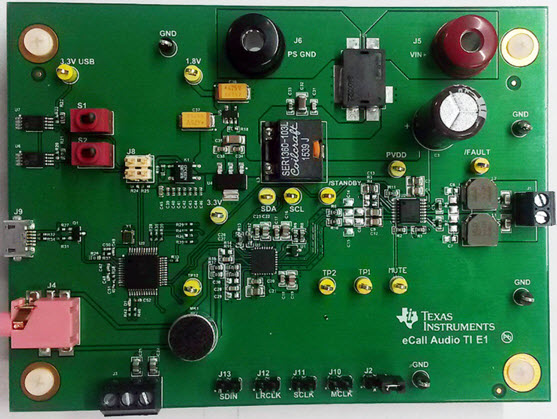

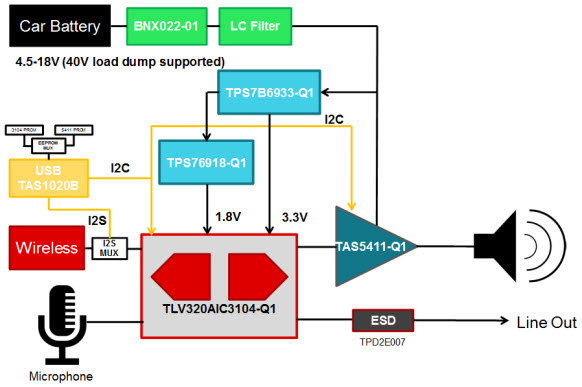

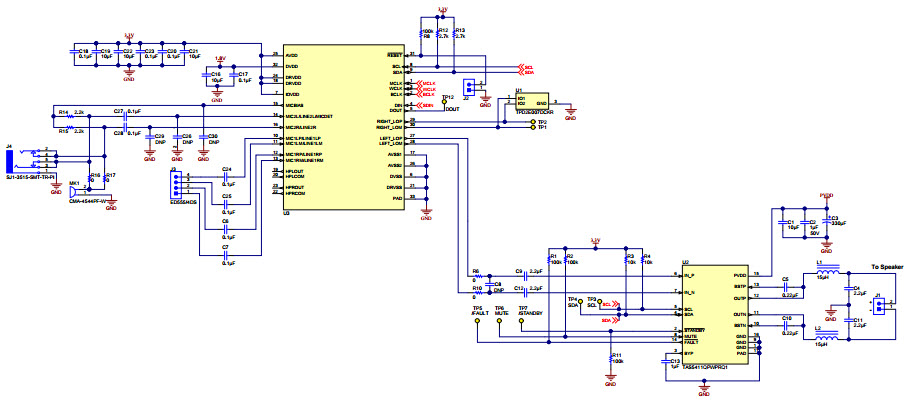

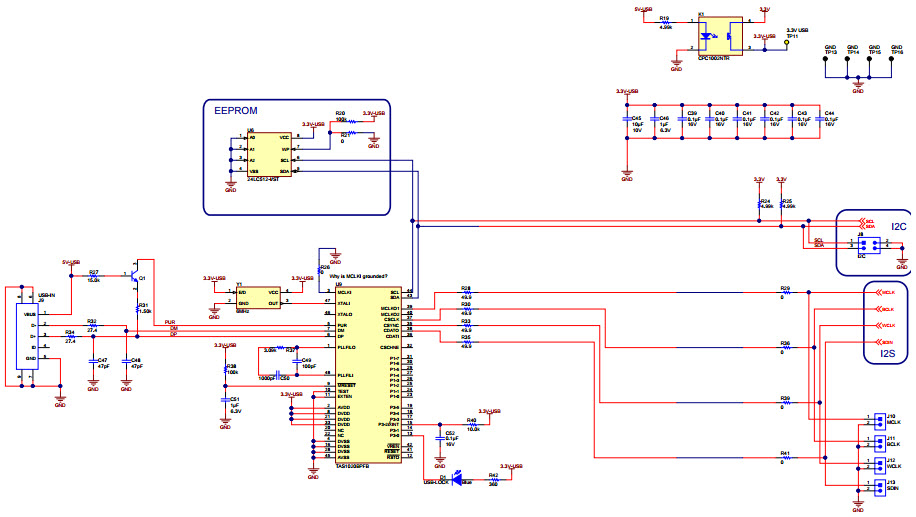

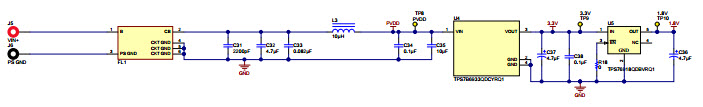

- TIDA-00724, Automotive Emergency Call (eCall) Audio Subsystem Reference Design. The efficiency and diagnostics necessary for automotive emergency call (eCall) systems generate unique requirements for the audio subsystem, such as speaker diagnostics and low power consumption. This Design shows how to use automotive two-channel audio codec (TLV320AIC3104-Q1) and a class-D audio amplifier (TAS5411-Q1) for eCall applications
Haupteigenschaften
-
Number of Channels2
-
Output Power8 W
-
Amplifier TypeClass-D
Empfohlene Bauteile (6)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
24LC512-I/ST | Microchip Technology | EEPROM | EEPROM Serial-I2C 512K-bit 64K x 8 3.3V/5V 8-Pin TSSOP Tube | In den Warenkorb | |
|
6PAIC3104IRHBRQ1 | Texas Instruments | Audio CODECs | PCM Audio Codec 2ADC / 2DAC Ch 32-Pin VQFN EP T/R Automotive AEC-Q100 | In den Warenkorb | |
|
TPS76918QDBVRQ1 | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.8V 0.1A 5-Pin SOT-23 T/R Automotive AEC-Q100 | In den Warenkorb | |
|
BNX022-01L | Murata Manufacturing | EMI Filters | EMI Filter LC-Circuit 1MHz to 1000MHz 35dB 20A 50VDC Flat Style SMD T/R | In den Warenkorb | |
|
TPS7B6933QDCYRQ1 | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 4-Pin(3+Tab) SOT-223 T/R Automotive AEC-Q100 | In den Warenkorb | |
|
TAS5411QPWPRQ1 | Texas Instruments | Audio Amplifiers | Audio Amp Speaker 1-CH Mono 8W Class-D Automotive AEC-Q100 16-Pin HTSSOP EP T/R | In den Warenkorb | |
