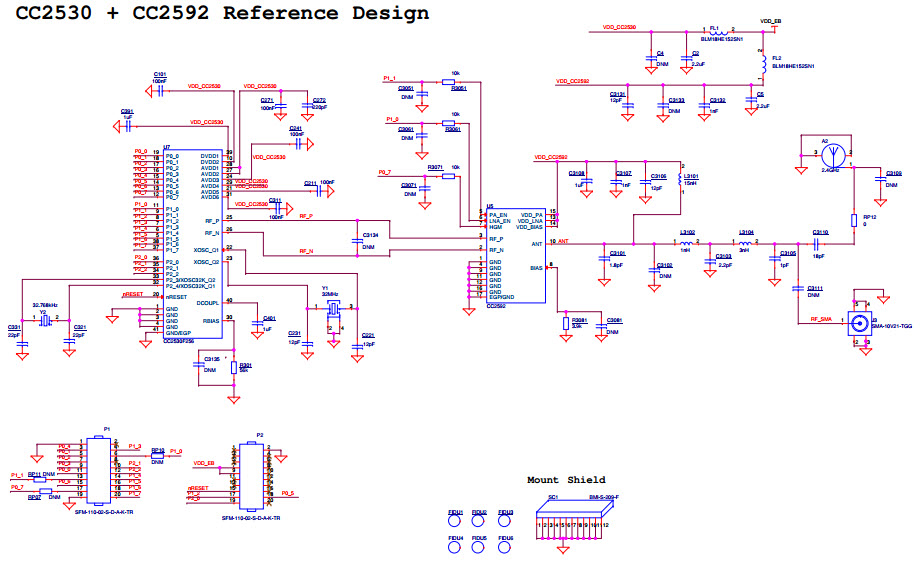

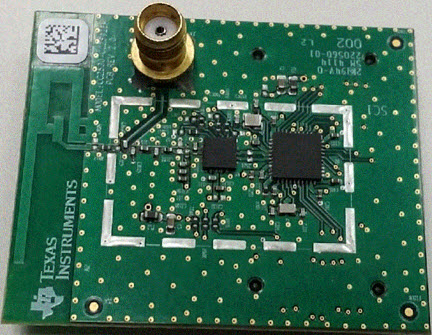

TIDC-CC2530-CC2592EMK-RD, ZigBee CC2530 Wireless MCU and CC2592 range Extender Reference Design with 120dB Link Budget
Referenzdesign unter Verwendung des Teils CC2530F256RHAR von Texas Instruments
Bilder
1 / 2
Zugehörige Dokumente
- CC2530 Wireless MCU & CC2592 Range Extender with 120dB Budget BOM
- CC2530 Wireless MCU & CC2592 Range Extender with 120dB Budget Schematic
- CC2530 Wireless MCU & CC2592 Range Extender with 120dB Budget Test Results
- CC2530 Wireless MCU & CC2592 Range Extender with 120dB Budget CAD Files
- CC2530 Wireless MCU & CC2592 Range Extender with 120dB Budget Quick Start Guid
Für Endprodukte
- Home Automation
- Industrial Automation HMI
- Industrial Lighting
- Industrial Metering
- IoT Applications
- Network Sensor
Beschreibung
- TIDC-CC2530-CC2592EMK-RD, ZigBee CC2530 wireless MCU and CC2592 range extender reference design with 120dB link budget. In the Internet of Things (IoT) market, ZigBee applications such as home and industrial automation, lighting, metering and sensor networks could need a longer RF transmission range and better sensitivity than the stand-alone CC2530 wireless MCU can offer. new CC2530-CC2592 reference design pairs the cost-effective ZigBee CC2530 wireless MCU with CC2592 range extender improving the receiver sensitivity by 2-3 dB and increasing the total link budget to 120 dB, enabling significant improvements in the range of each node in the ZigBee network
