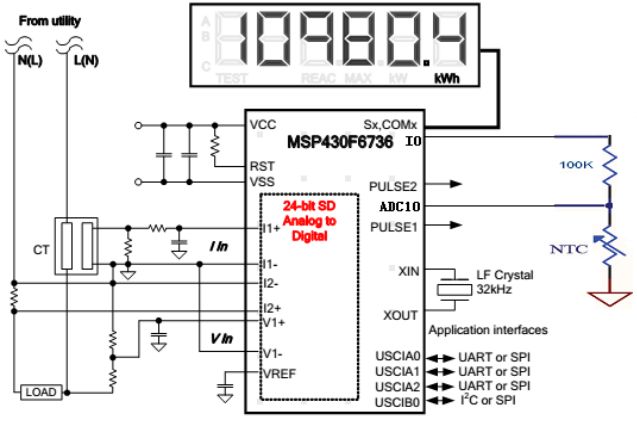

TIDM-TEMPCOMPENSATED-RTC, Microcontroller Based Temperature Compensated Real Time Clock Solution
Referenzdesign unter Verwendung des Teils MSP430F6736IPZ von Texas Instruments
Bilder
1 / 3
Für Endprodukte
- E-Power Meter
- Metering
Beschreibung
- TIDM-TEMPCOMPENSATED-RTC, Microcontroller Based Temperature Compensated Real Time Clock Solution. This report introduced the methodology to implement an ultra low power real time clock with temperature compensation function in MSP430F6736. This report describes the crystal's temperature characteristics and posts to use MSP430F6736's RTC-C module plus software to implement a ultra low power RTC, with automatic temperature compensation feature and second ticks generation function
