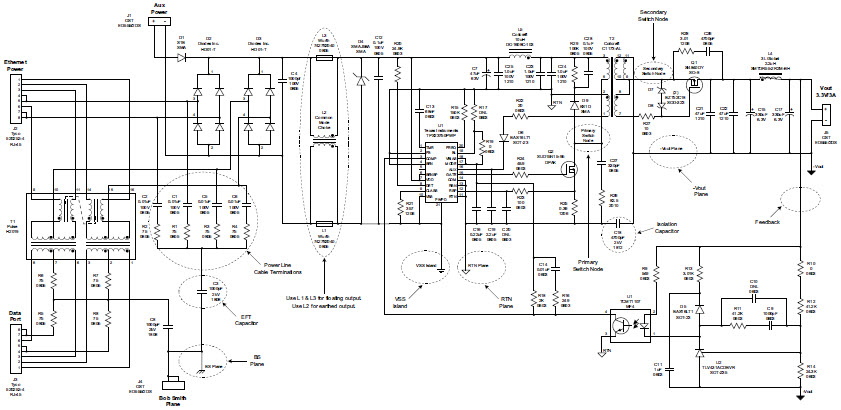

TPS23750EVM-108, Evaluation Board for the 3.3V DC to DC Single Output Power Supply for Power Over Ethernet
Referenzdesign unter Verwendung des Teils TPS23750PWP von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Power Over Ethernet
Beschreibung
- TPS23750EVM-108, Evaluation Board for the 3.3V DC to DC Single Output Power Supply for Power Over Ethernet. The Designing an EMI Compliant PoE Powered Device With Isolated DC/DC Flyback Converter
Haupteigenschaften
-
Conversion TypeDC to DC
-
Output Voltage3.3 V
-
Output Current3 A
-
TopologyFlyback
Empfohlene Bauteile (5)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TCMT1107 | Vishay | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SSOP T/R | In den Warenkorb | |
|
TLV431ACDBVR | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 6V 15mA 5-Pin SOT-23 T/R | In den Warenkorb | |
|
TPS23750PWPR | Texas Instruments | Power Over Ethernet - PoE Controllers | Power Over Ethernet PD Controller 0V 67V 20-Pin HTSSOP EP | In den Warenkorb | |
|
|
TPS23750PWP | Texas Instruments | Power Over Ethernet - PoE Controllers | Power Over Ethernet PD Controller 0V 67V 20-Pin HTSSOP EP | In den Warenkorb | |
|
|
TPS23750PWPRG4 | Texas Instruments | Power Over Ethernet - PoE Controllers | Power Over Ethernet PD Controller 0V 67V 20-Pin HTSSOP EP | In den Warenkorb | |
