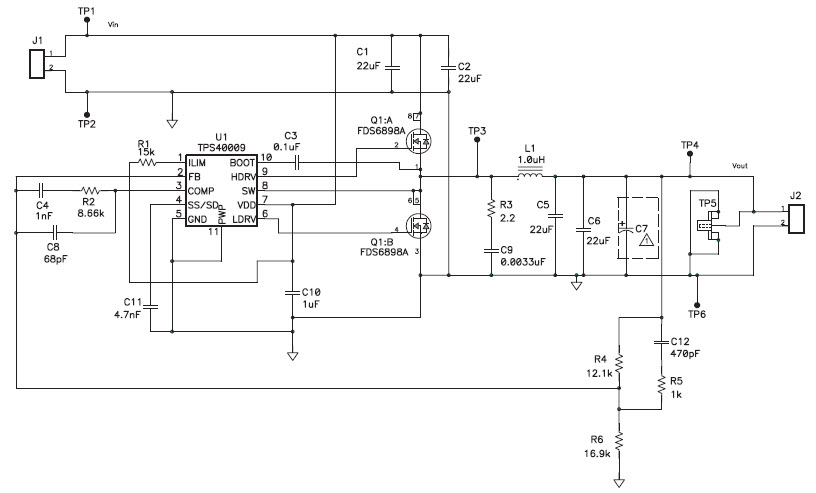

TPS40009EVM-001, Evaluation Board for the TPS40009-Based, 5-A Converter in Less Than One Square Inch
Referenzdesign unter Verwendung des Teils TPS40009DGQ von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Power Supplies
- Processor Power Management
- Servers
- Wired Networking
- Wireless Base Station
Beschreibung
- TPS40009EVM-001, Evaluation Board for the TPS40009-Based, 5-A Converter in Less Than One Square Inch. The TPS40009-Based, 5-A Converter in Less Than One Square Inch. TPS40009 is a voltage-mode, synchronous buck PWM controller that uses proprietary Predictive Gate Drive technology to wring maximum efficiency from step-down converters. This controller provides a bootstrap charging circuit to allow the use of an N-channel MOSFET as the topside buck switch to reduce conduction losses and increase silicon device utilization. Predictive Gate Drive technology controls the delay from main switch turn-off to synchronous rectifier turn-on and also the delay from rectifier turn-off to main switch turn-on
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage3 to 3.6 V
-
Output Voltage1.2 V
-
Output Current0 to 5 A
-
Efficiency90 %
-
TopologyBuck
