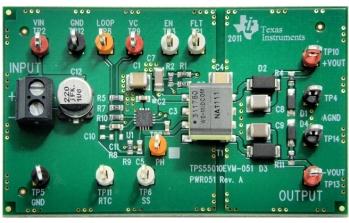

TPS55010EVM-051, Evaluation Board for the TPS55010 Low-Power, Isolated Fly-buck DC/DC Converter
Referenzdesign unter Verwendung des Teils TPS55010RTE von Texas Instruments
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Data Acquisition System
- Industrial Programmable Logic Controllers (PLCs)
- Portable Medical Devices
Beschreibung
- TPS55010EVM-051, is a fully assembled and tested circuit for evaluating the TPS55010 Isolated DC/DC Converter with Integrated FETs. The TPS55010EVM-051 uses fixed frequency current mode control and a half bridge power stage with primary side feedback to regulate the dual, 600mW output voltages
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage3 to 6 V
-
Output Voltage-15|15 V
-
Output Current0 to 0.04@-15V|0 to 0.04@15V A
-
Efficiency83 %
-
TopologyFly-Buck
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS55010RTER | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.95V to 6V Non-Inv/Inv/Step Up/Step Down Dual-Out 5V to 20V/-5V to -20V 0.1A/.01A 16-Pin WQFN EP T/R | In den Warenkorb | |
|
|
TPS55010RTET | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.95V to 6V Non-Inv/Inv/Step Up/Step Down Dual-Out 5V to 20V/-5V to -20V 0.1A/.01A 16-Pin WQFN EP T/R | In den Warenkorb | |
