TPS715A01DRB, Evaluation Board for TPS715 5V DC to DC Single Output Power Supply

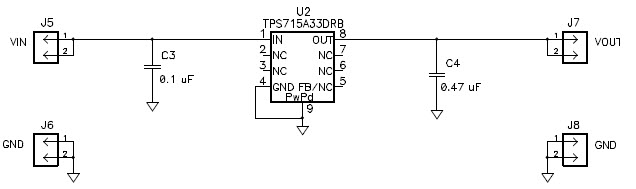

Referenzdesign unter Verwendung des Teils TPS715A33DRB von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Automotive and Transportation
- Industrial
- Medical Imaging
- Personal Digital Assistant
- Portable
Beschreibung
- TPS715A01DRB, Evaluation Board for the TPS715 5V DC to DC Single Output Power Supply. The TPS715AxxEVM uses TPS715A33 in a 3x3-mm QFN package to provide 5V at up to 80 mA. EVM operates with full-rated performance with an input voltage between 3.5 and 24V
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage3 to 24 V
-
Output Voltage5 V
-
Output Current0 to 0.08 A
-
TopologyLDO
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS715A33DRBR | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.08A 8-Pin VSON EP T/R | In den Warenkorb | |
|
|
TPS715A33DRBT | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.08A 8-Pin VSON EP T/R | In den Warenkorb | |
