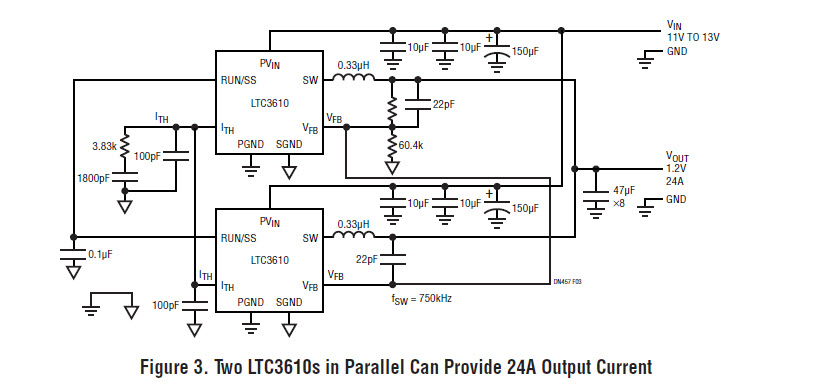

Two LTC3610s in Parallel Can Provide 24A Output Current
Referenzdesign unter Verwendung des Teils LTC3610 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Distributed Control System
Beschreibung
- Two parallel LTC3608 Synchronous Step-Down Regulator. It supplies 1.2V at 24A maximum load current from a 11V to 13V input source
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage11 to 13 V
-
Output Voltage1.2 V
-
Output Current24 A
-
TopologyBuck
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC3610EWP#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 24V Synchronous Step Down Single-Out 0.6V to 27.72V 12A 64-Pin QFN EP Tube | In den Warenkorb | |
|
|
LTC3610EWP#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 24V Synchronous Step Down Single-Out 0.6V to 27.72V 12A 64-Pin QFN EP T/R | In den Warenkorb | |
|
|
LTC3610IWP#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 24V Synchronous Step Down Single-Out 0.6V to 27.72V 12A 64-Pin QFN EP T/R | In den Warenkorb | |
|
|
LTC3610IWP#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4V to 24V Synchronous Step Down Single-Out 0.6V to 27.72V 12A 64-Pin QFN EP Tube | In den Warenkorb | |
